Description

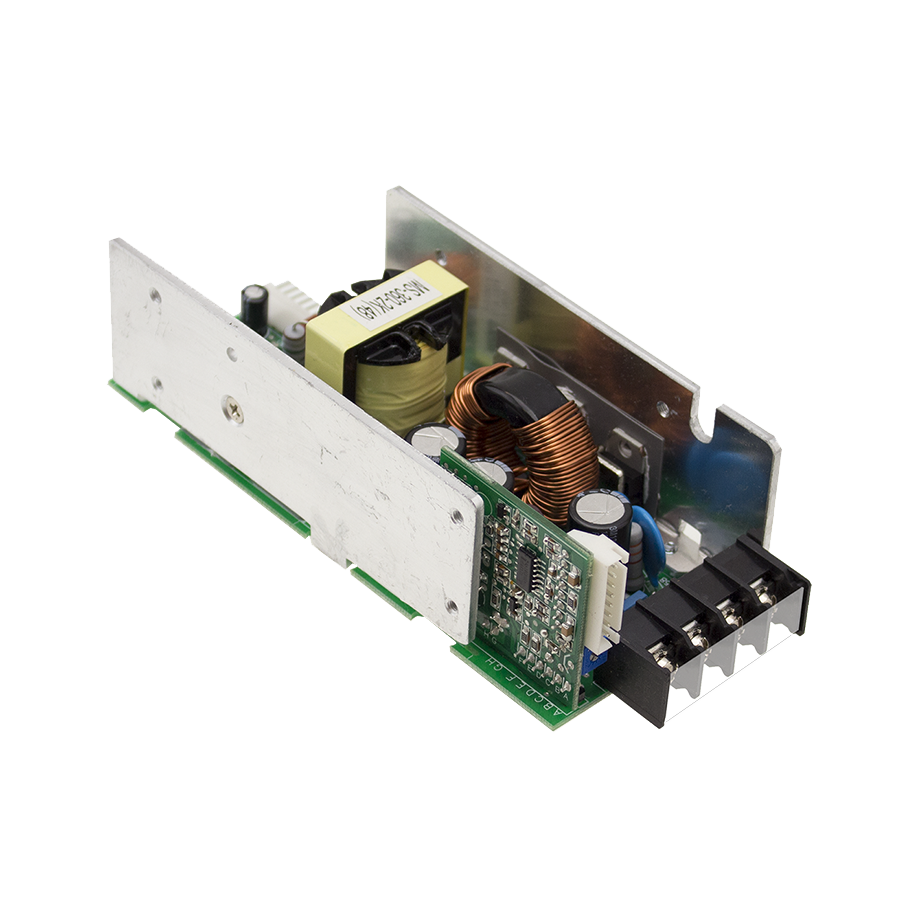

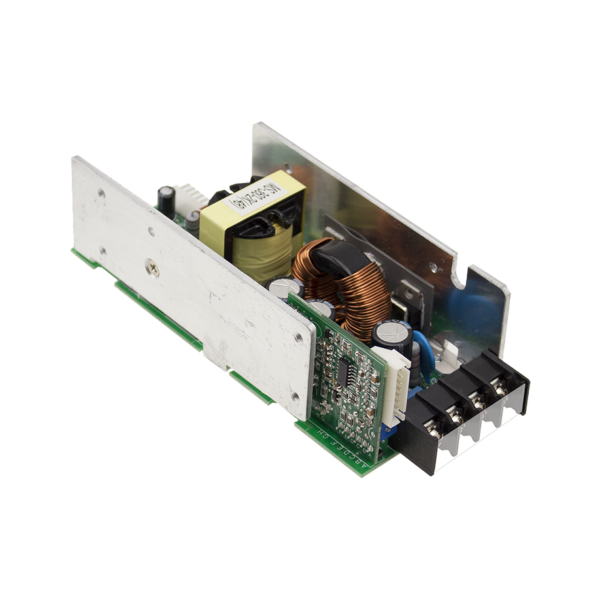

The MS-360 Series of 120W Single output 2 SLOT modular power supplies are installed into the following modules for a more bespoke design:
MP450
MP650
MP1K0
There are also 75W, 150W ,210W, 300W single output modules and 100W dual output modules to fulfil all kinds of applications up to 14 isolated outputs. There are multiple combinations available for the modular series. You can configure the DC outputs needed to get the fastest solution for your power requirements with safety and EMC certificates. No more NRE/safety application charges and long periods of waiting for certificates to come through! This is a revolutionary standard power solution that fulfils your custom made request!
MS-75 Series
MS-100 Series
MS-210 Series
MS-300 Series
MD-100 Series
Additional information
Outputs | Single |
---|---|
Power (watts) | 120W, 200W, 210W, 300W, 360W |
Various output configuration is selectable
Built-in active PFC , PF>0.95
Universal AC input/full range
Remote control on every individual output module
Remote Sense on every single output module
(MS-75, 150, 210, 300, 360)
Remote margin / V-program (MS-210/360)
Built-in parallel functions (MS-210/300/360)
Protections: Short circuit / Overload / Over voltage for all
output modules
Additional 12V/0.1A auxiliary output for remote control
Cooling by built-in DC fan with fan alarm function
3 years warranty
Products in this range
Part number | Power (watts) | Current (amps) | R&N (mV) | |
---|---|---|---|---|
MS-120-1D | 210W | 28A | 100mV | Request Quote |
MS-360-1A | 120W | 60A | 80mV | Request Quote |
MS-360-1B | 200W | 60A | 100mV | Request Quote |
MS-360-1C | 300W | 60A | 100mV | Request Quote |
MS-360-1D | 360W | 48A | 100mV | Request Quote |
MS-360-1E | 360W | 30A | 150mV | Request Quote |
MS-360-1F | 360W | 24A | 150mV | Request Quote |
MS-360-1G | 360W | 20A | 150mV | Request Quote |
MS-360-1H | 360W | 15A | 200mV | Request Quote |
MS-360-1I | 360W | 13A | 200mV | Request Quote |
MS-360-1J | 360W | 11A | 250mV | Request Quote |
MS-360-1K | 360W | 7A | 300mV | Request Quote |
