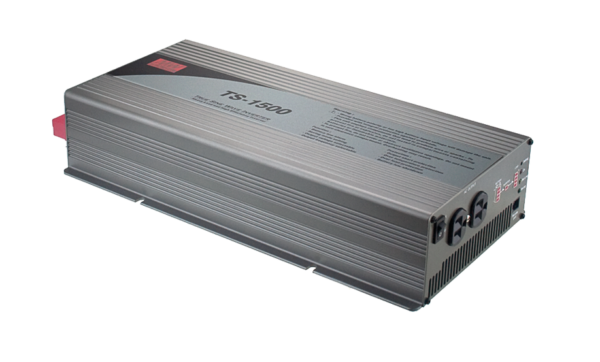

TS-1500 Series - 1500W True Sine Wave DC-AC Power Inverter

Email

Description

TS-1500 is a high performance true sine wave DC/AC power inverter that uses high frequency circuit topology. With high efficiency up to 91% this dc/ac inverter can provide 1500W continuously and peak load of 17250W for 180 seconds, 2250W for 10 seconds or 3000W surge power for 30 utility cycles.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

CE, CUL, E13

Type

DC/AC

Outputs

Single

Converts

DC to AC Mains Power

  • True sine wave output (THD<3%)
  • High surge power up to 3000W
  • High efficiency up to 91%
  • Power ON-OFF switch
  • Standby saving mode can be selected
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, over load protections
  • Optional monitoring software
  • Worldwide AC output receptacle options available
  • Home appliances
  • power tools
  • office equipment
  • portable equipment
  • vehicles
  • yachts
OUTPUT
Rated Power1500W
Maximum Output Power1725W for 180 sec./2250W for 10 sec./surge power 3000W for 30 cycles
AC Voltage200/220/230/240VAC selectable by setting button
Frequency50±0.1%Hz 50/60Hz selectable by setting button S.W
WaveformTrue sine wave (THD<3%) at rated input voltage
AC Regulation±3.0%
Saving ModeLoad <5W will be changed to standby mode
Front Panel IndicatorBattery voltage level, output load level, saving mode, fault and operation status
***************************
INPUT
No Load Dissipation<18W @ standby saving mode
Off Mode Current Draw<1mA
Battery TypesOpen & sealed lead acid
Input Bat. Polarity ProtectionBy internal fuse open
***************************
Over Temperature Protection65°C ±5°C
Shut down o/p voltage, re-power on to recover;
by internal RTH3 detect on heatsink of power transistor
Output Short ProtectionShut down o/p voltage, re-power on to recover
Over Load Protection105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
Shut down o/p voltage, re-power on to recover
GFCI ProtectionNone
Working Temperature0°C ~ 40°C @ 100% load; 60°C @ 50% load
Working Humidity20% ~ 90% RH non-condensing
Storage Temperature, Humidity-30°C ~ +70°C/-22°F ~ +158°F, 10 ~ 95% RH
Vibration10 ~ 500Hz, 3G 10min./1 cycle, 60 min. each along X, Y, X axes
Withstand VoltageBat I/P-AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Safety StandardsEN60950-1
EMI Conduction & RadiationCompliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
EMS ImmunityCompliance to EN61000-4-2,3,8 ENV50204
Control WiringRJ11 -RS232 (Option)
  • CE
  • CUL
  • E13
