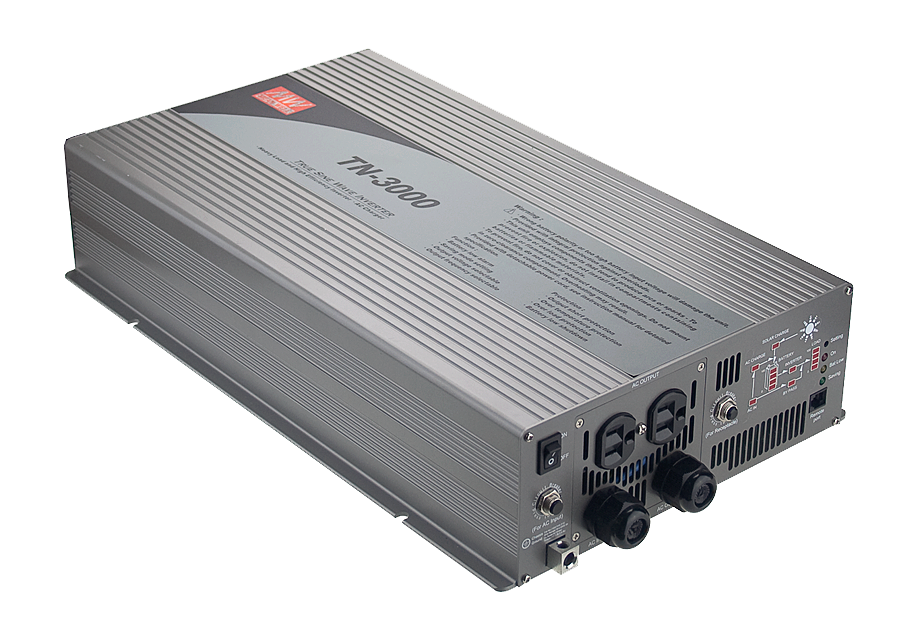

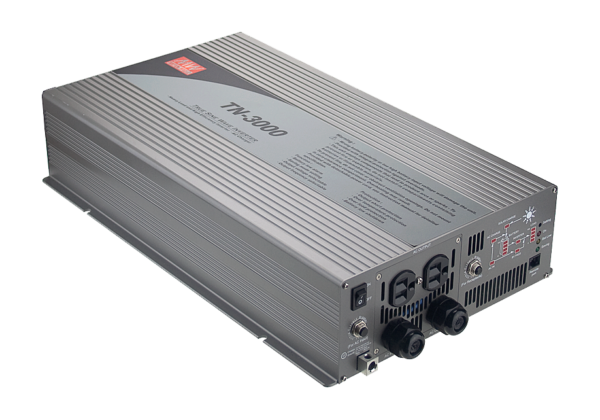

TN-3000 Series - TN-3000 Series 3000W DC/AC Inverter with Solar Charger

3000W DC/AC Inverter with Solar Charger

Email
SKU: TN-3000 Series Category:

Description

TN-3000 Series is a high performance true sine wave DC/AC power inverter that uses high frequency circuit topology and has the added functionality of a solar charger. With high efficiency up to 92%. TN-3000 is capable of providing a constant 3000W, peak power of 3450W for 3 minutes, 4500W for 10 seconds and power surge power of 6000W. Available in 24V and 48V versions with USA, European or UK AC output recepticals.

Samples available Q2 2009
Safety Aprovals Q2 2009

Additional information

Function

AC Charger,By-Pass Function,Solar Charger

Type

DC/AC,True Sine Wave

Range Power

Outputs

Single

  • True sine wave output (THD<3%)
  • Power ON-OFF switch
  • Saving mode set by switch
  • LED panel indicating power status
  • Thermostatically controlled cooling fan
  • Bat. low alarm/Bat. low shutdown/Over temp./Output short/Input polarity reverse/Over load protections
  • Approvals: UL458/e13/CE/FCC
  • home appliances
  • power tools
  • office equipment
  • portable equipment
  • vehicle
  • yacht
  • motor home
