Description

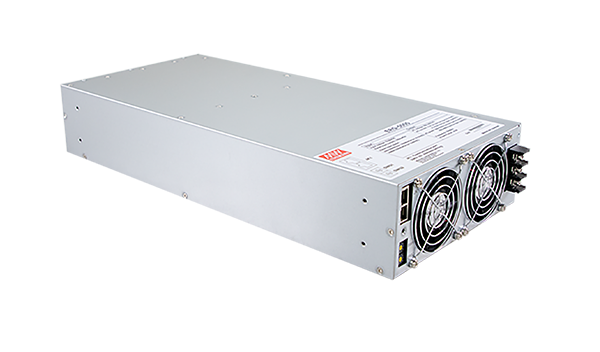

ERG-5000 Series are Grid Type energy recycling power inverters that support 5KV rated inputs, with a peak up to 6KV, achieving efficiencies up to 91%. Designed to allow Constant Current and Constant Voltage modes via 4 input channels the ERG-5000 Series can be used independently or connected in Series or Parallel to increase application suitability. Remote control and monitoring functionality can also be achieved with the addition of CMU2A or the CANBus protocol for data analysis and remote monitoring.
Additional information
| Function | CANBus Protocol,Constant Current Mode,Constant Voltage Mode,Parallel |
|---|---|
| Inputs | 10 ~ 420VDC,10 ~ 60VDC |
| Technology | ECO,Industrial |
| Type | DC/AC,Grid Inverter,Power Inverter |
| Range Power | |
| Outputs | Single |
| warranty |
- 10 ~ 60VDC & 60 ~ 420VDC wide input voltage ranges

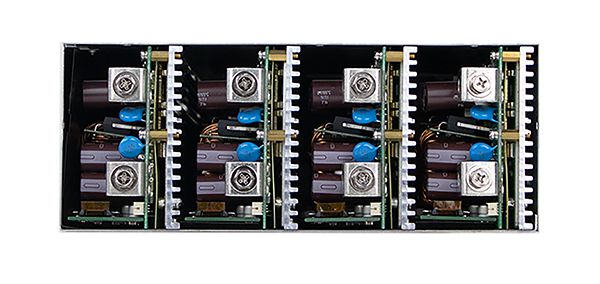

- Modular design for flexible configuration
- Flexible Constant Current & Constant Voltage operation modes
- Remote control and monitoring by CANBus protocol via CMU2A
- Upto 64 units can be connected in Parallel
- Battery test systems
- Power supply aging systems
- Energy recycling systems
- Connector mechanical tester
