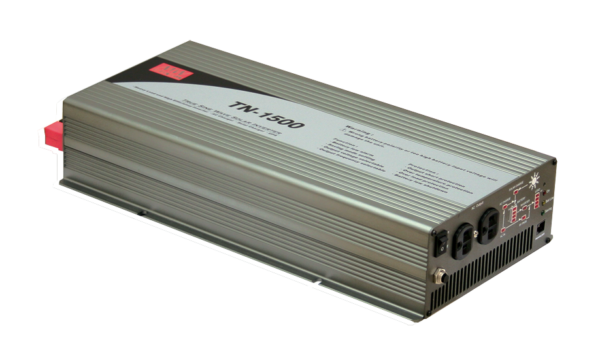

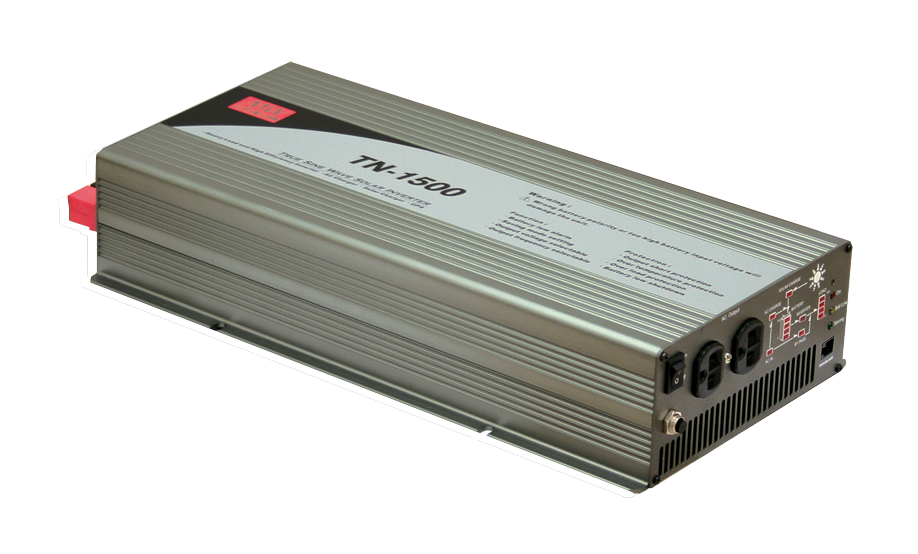

TN-1500-224D - TN-1500-224D 1500W 24V True Sine Wave Inverter with Solar Charger

1500W 24V True Sine Wave Inverter with Solar Charger

Email
SKU: TN-1500-224D Category: Category:

Description

TN-1500-224D true sine wave inverter, fitted with UK AC outlet, and suitable for most 200-240VAC loads, including household electrical equipment and motor applications. The unit has a rated power of 1500W, 230VAC output and 24VDC input; additional functionality is available in the form of an AC charger and solar charger.

The front panel of TN-1500-224D had indicators for load, battery and operational status; optional computer monitoring software is also available. Standard features of this unit include Battery low alarm, Battery low shutdown, over voltage, over temperature, output short, input polarity reverse, over load and AC circuit breaker protections, high surge capability of 3000W, high efficiency of 90%, power on/off switch, standby saving mode, thermostatically controlled cooling fan and selectable UPS and energy saving modes.

Additional information

Weight 8.00 kg
Efficiency (%)

0.9

Function

AC Charger,By-Pass Function,Solar Charger

Inputs

24VDC

Power (watts)

1500W

Type

DC/AC,True Sine Wave

Voltage (max/rated)

230VAC

Range Power

Outputs

Single

  • True sine wave output (THD<3%)
  • High surge power up to 3000W
  • U.P.S. mode and energy saving mode (selectable)
  • High efficiency up to 91%
  • Power ON-OFF switch
  • Standby saving mode can be selected
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, over load, AC circuit breaker protections
  • Built in solar/AC charger
  • Computer monitoring software
  • Worldwide AC output receptacle options available
  • Home appliances
  • Power tools
  • Office equipment
  • Portable equipment
  • Vehicles
  • Yachts
