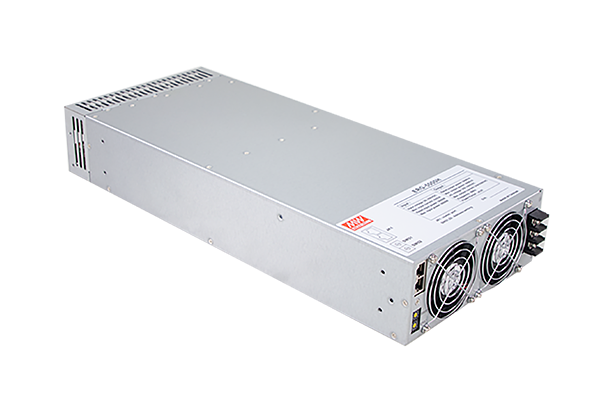

ERG-5000H - ERG-5000H 5000W 4500 ~ 4600VA 180 ~ 264VAC 24A 10 ~ 420VDC Energy Recycling NEWSOK Grid Power Inverter
ERG-5000H is a 5000W 4500 ~ 4600VA 180 ~ 264VAC 24A 10 ~ 420VDC Energy Recycling Grid Power Inverter with NEWSOK input connectors
Description

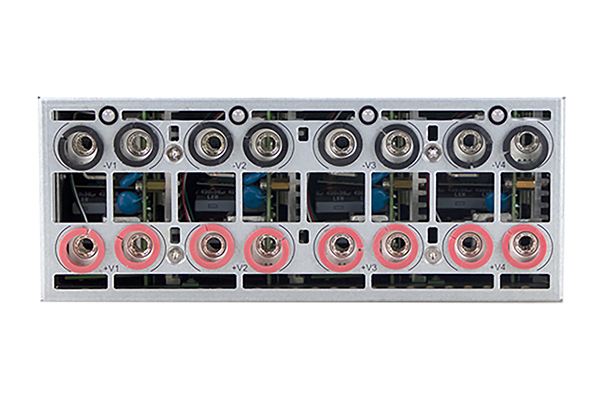

- NEWSOK DC input connections
- Modular design for flexible configuration
- Flexible Constant Current & Constant Voltage operation modes
- Remote control and monitoring by CANBus protocol via CMU2A
- Over voltage, under voltage, over temperature, over power, grid fault, communication error protections
Additional information
| Weight | 11.00 kg |
|---|---|
| Current (amps) | 24A |
| Function | CANBus Protocol,Constant Current Mode,Constant Voltage Mode,Parallel |
| Inputs | 10 ~ 420VDC |
| Power (watts) | 4500 ~ 4600VA,5000W |
| Standards | CE,UKCA |
| Technology | ECO,Industrial |
| Type | DC/AC,Grid Inverter,Power Inverter |
| Voltage (max/rated) | 180 ~ 264VAC |
| Range Power | |
| Outputs | Single |
| warranty |
- 10 ~ 60VDC & 60 ~ 420VDC wide input voltage ranges
- Modular design for flexible configuration
- Flexible Constant Current & Constant Voltage operation modes
- Remote control and monitoring by CANBus protocol via CMU2A
- Upto 64 units can be connected in Parallel
- Battery test systems
- Power supply aging systems
- Energy recycling systems
- Connector mechanical tester
