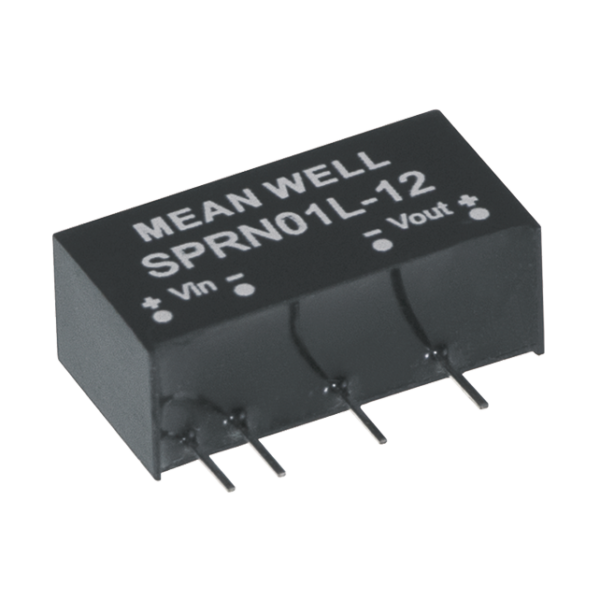

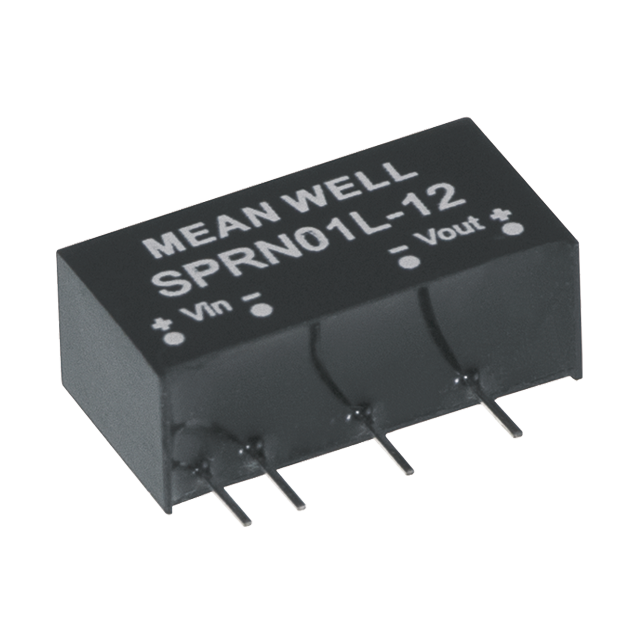

SPRN01 Series - SPRN01 Series 1W SIP Package DC-DC Regulated Single Output Converter

SPRN01 Series 1W SIP Package DC-DC Regulated Single Output Converter range is available in output voltages of 5V, 12V or 15V and input voltages of 5V, 12, 24V or 48V with -5 ~ +10% adjustment.

Email

Description

SPRN01 Series 1W SIP Package DC-DC Regulated Single Output Converter range feature international standard pins, wide working temperature range of -40C ~ +90C, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated Class B and short circuit protection.  The models are available in different input voltages of 5V, 12V, 24V  or 48V -5 ~ +10% and output voltages of 5V, 12V or 15V, which are suitable for all kinds of systems, such as industrial control, telecommunications, distributed power and more.

Additional information

Technology

Regulated

Type

DC/DC,Encapsulated,Module

Range Power

Outputs

Single

  • SIP6 package with industry standard pinout
  • Operating temperature range -40°C to +90°C
  • Compliance to EN55032 radiated Class B
  • Protections: short circuit
  • 1.5KVDC I/O Isolation
  • 3 year warranty
  • Telecom/datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyser
  • Detector
  • Data switch
