Description

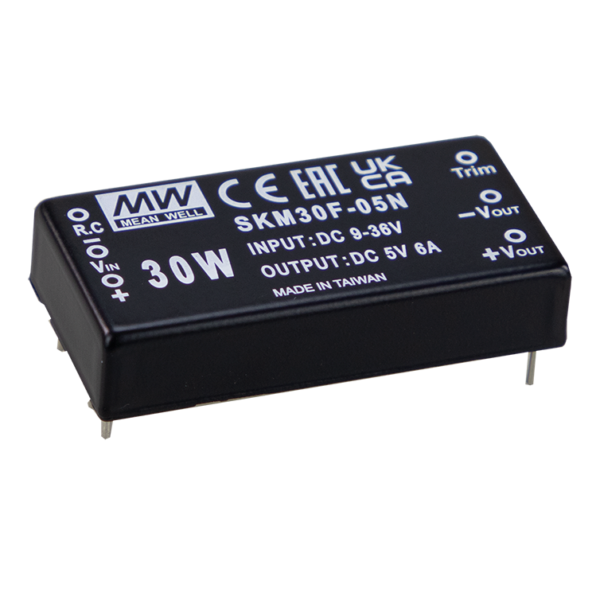

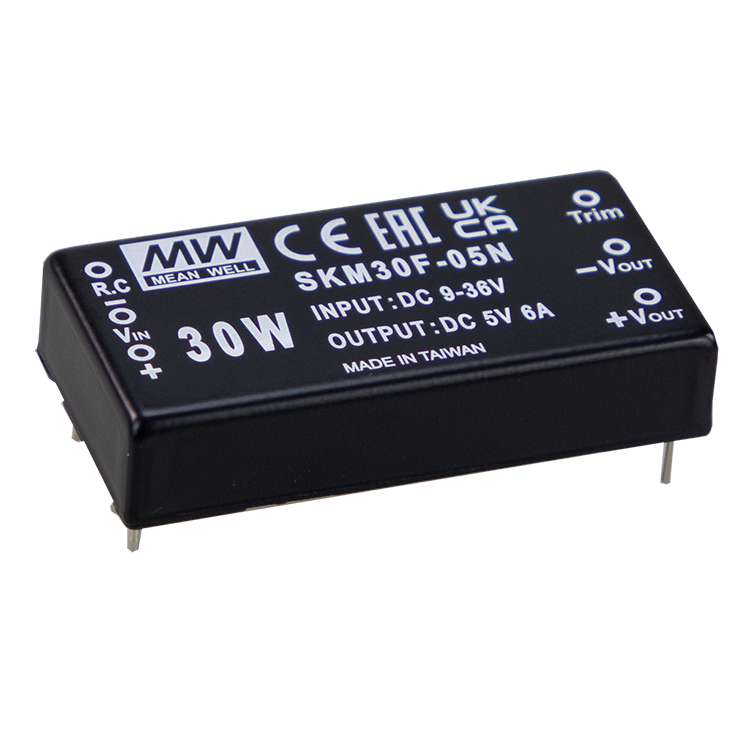

SKM30-N Series are 30W 2″x1″ package DC-DC isolated and regulated converters, specified to a industry standard DIP pinout. Models are available in 9 ~ 36VDC and 18 ~ 75VDC 4:1 ultrawide input ranges and single output voltages of 5V, 12V and 15V. Other features include remote ON/OFF and trimmable output voltage, high efficiency up to 89%, wide working temperature range of -40 to +90C, 3KVDC input and output isolation voltage and continuous mode short circuit, over load and over voltage protections.

Additional information

Weight 0.04 kg
Function

Remote ON-OFF

Inputs

18 ~ 75VDC,9 ~ 36VDC

Standards

CE,EAC,FCC,UKCA

Technology

Regulated

Type

DC/DC,Module Type

Range Power

Outputs

Single

warranty

  • 4:1 wide input range
  • No minimum load requirement
  • Complies to BS/EN55032 radiated Class A without need for additional components
  • 3KVDC I/O isolation
  • Short circuit, over load, over voltage protections
  • Remote ON/OFF control and triming output
  • Industrial control facilities
  • Wireless networks
  • Datacom systems
  • Instrumentation
  • Data switches
  • Telecommunications
  • CE,EAC,FCC,UKCA
