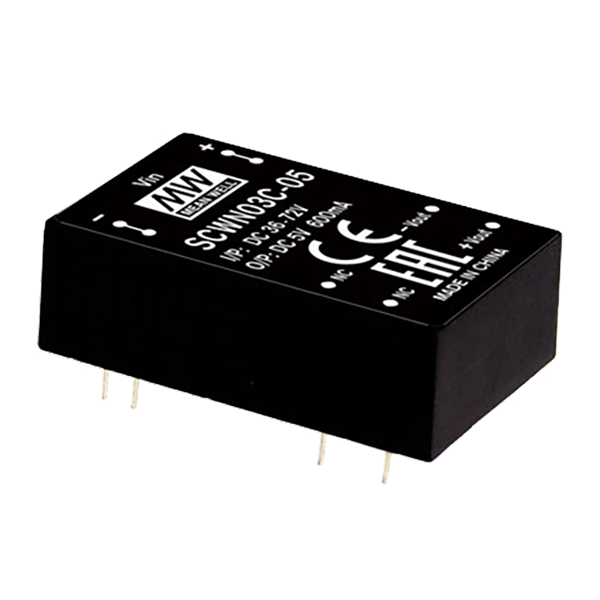

SCWN03 Series - 3W DIP24 Regulated DC-DC Converter

SCWN03 Series 3W DIP24 Regulated DC-DC Converters are available in inputs of 4.5~9V, 9~18V, 18~36V & 36~72V and outputs of 3.3V, 5V, 12V or 15V

Email

Description

SCWN03 Series of 3W DIP24 Regulated DC-DC Converters are single output isolated and regulated encapsulated modules with international standard pins. They feature a high efficiency up to 87%, wide working temperature range of -40 to +90C, input and output protections and compliance to EN55032 radiated Class A. The 3KVDC  input output isolation provides separation between supply and load

SCWN03 Series single output isolated and regulated encapsulated modules have no minimum load requirements and are available in input voltages of 4.5 ~ 9V, 9 ~ 18V, 18 ~ 36V and 36 ~ 72V 2:1 input range and output voltage of 3.3V, 5V, 12V or 15V making them idea for applications such as industrial control, telecommunications and distributed power architectures.

Additional information

Inputs

18 ~ 36VDC,36 ~ 72VDC,4.5 ~ 9VDC,9 ~ 18VDC

Type

DC/DC,Encapsulated,Module

Range Power

Outputs

Single

warranty

  • DIP24 package with industry standard pinout
  • 2:1 wide input range
  • Operating temperature range -40 ~ +90C
  • No minimum load required
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 87%
  • Short circuit (Continuous), Overload, Input under voltage protections
  • 3KVDC I/O isolation
  • 3 years warranty
  • Telecom/datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrumentation
  • Analyzers
  • Detectors
  • Data switches
