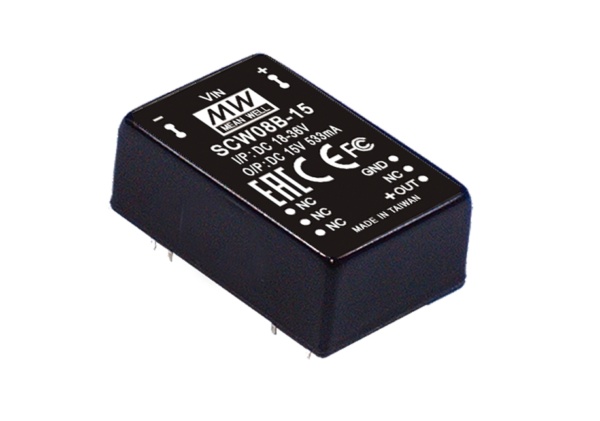

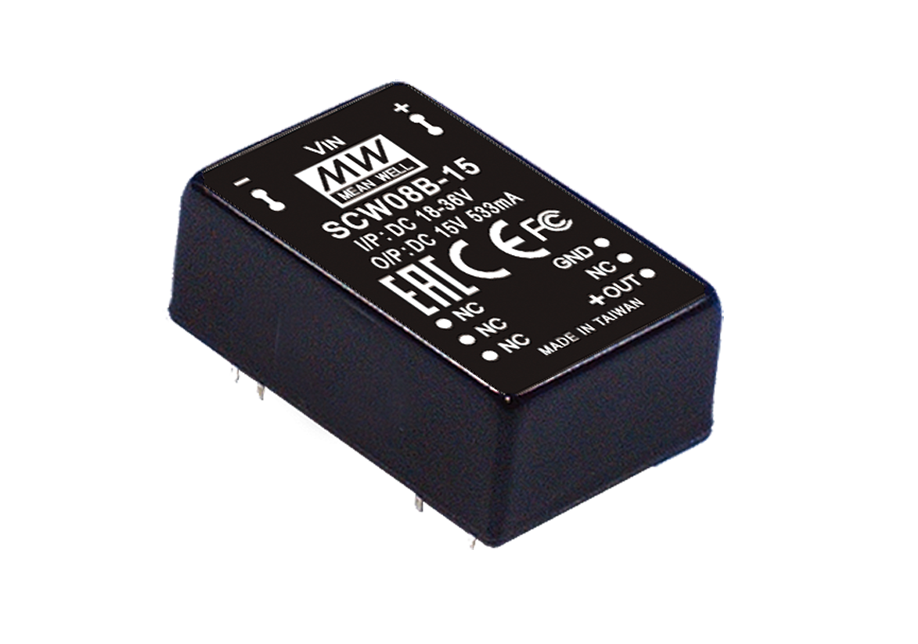

SCW08B-12 - 8W 12V DC-DC Regulated Single Output Converter
SCW08B-12 is an 8W 12V DC-DC Regulated Single Output Converter.
SKU: SCW08B-12
Categories: DC-DC Converters, Uncategorized
Category: DC-DC ConvertersSwitching Power Supply
Additional information
Weight | 0.02 kg |
---|---|
Efficiency (%) | 82% |
Power (watts) | 8W |
R&N (mV) | 60mV |
Type | DC/DC,Encapsulated,Module |
Voltage (max/rated) | 12VDC |
Range Power |
- 2:1 wide input range
- 1000VDC I/O isolation
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Five-sided shield metal case
- 100% full load burn-in test
- Low cost / High reliability
Products in this range
Part number | Power (watts) | Voltage (max/rated) | R&N (mV) | Efficiency (%) | |
---|---|---|---|---|---|
SCW08A-05 | 8W | 5VDC | 50mV | 75% | Request Quote |
SCW08A-12 | 8W | 12VDC | 60mV | 80% | Request Quote |
SCW08A-15 | 8W | 15VDC | 60mV | 79% | Request Quote |
SCW08B-05 | 8W | 5VDC | 50mV | 78% | Request Quote |
SCW08B-12 | 8W | 12VDC | 60mV | 82% | Request Quote |
SCW08B-15 | 8W | 15VDC | 60mV | 79% | Request Quote |
SCW08C-05 | 8W | 5VDC | 50mV | 78% | Request Quote |
SCW08C-12 | 8W | 12VDC | 60mV | 81% | Request Quote |
SCW08C-15 | 8W | 15VDC | 60mV | 81% | Request Quote |
