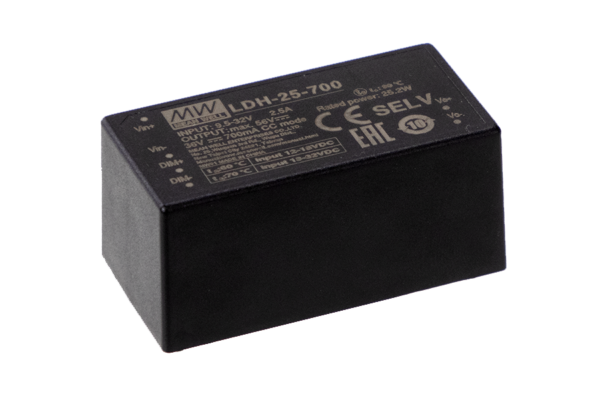

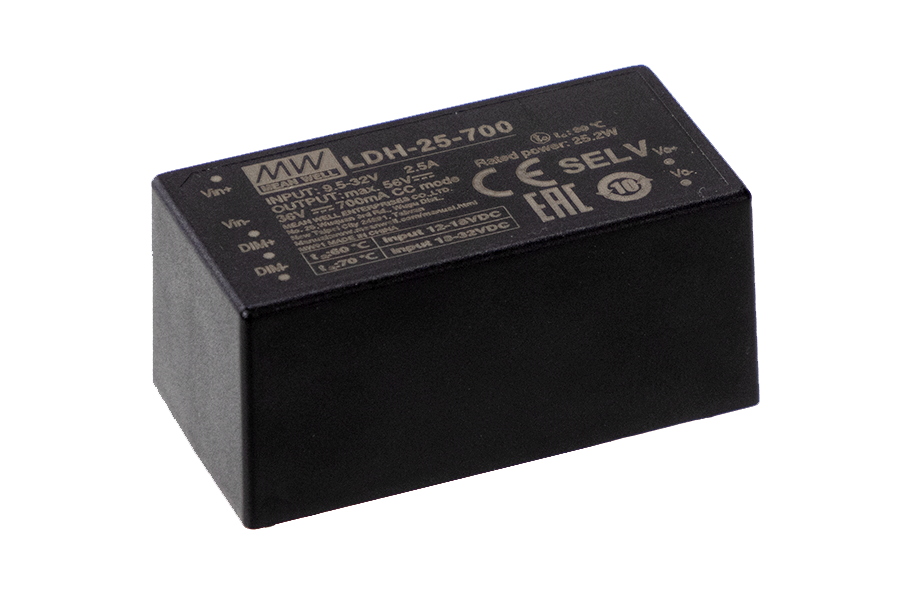

LDH-25 Series - LDH-25 Series 25W DC-DC Step-Up Constant Current LED driver

LDH-25 Series 25W DC-DC Step-Up Constant Current LED driver with 9.5 ~ 32VDC input voltage range and models with rated current ranging between 250mA and 700mA.

Email

Description

LDH-25 Series is a 25W DC-DC Step-Up Constant Current LED driver that operates from 9.5~32VDC and offers models with different rated currents ranging from 250mA and 700mA. With high efficiency up to 95.5% and the fully potted 94V-0 flame retardant plastic case, enhancing the heat dissipation this series is ideal for solar LED street lighting.


LDH-25 Series is equipped with various function options, such as dimming methodologies, so as to provide optimal design flexibility for DC source LED lighting systems.

Additional information

Function

PWM Dimming

Inputs

9.5 ~ 32VDC

Standards

CE,EAC

Technology

Step-up mode

Type

Constant Current,DC/DC,Encapsulated,Module,LED Driver

Range Power

Outputs

Single

  • Wide DC input voltage
  • DC/DC step-up converter
  • Constant current output 250mA to 700mA
  • Wide output LED forward voltage, up to 84VDC
  • High efficiency up to 95.5%
  • 2 in 1 dimming – 0-10V, PWM
  • Protections: short circuit, over voltage
  • Cooling by free air convection
  • Fully encapsulated
  • 3 years warranty
  • DC battery source lighting
  • Portable lighting
  • LED solar street lighting
  • LED greenhouse lighting
  • LED lowbay lighting
  • CE,EAC
