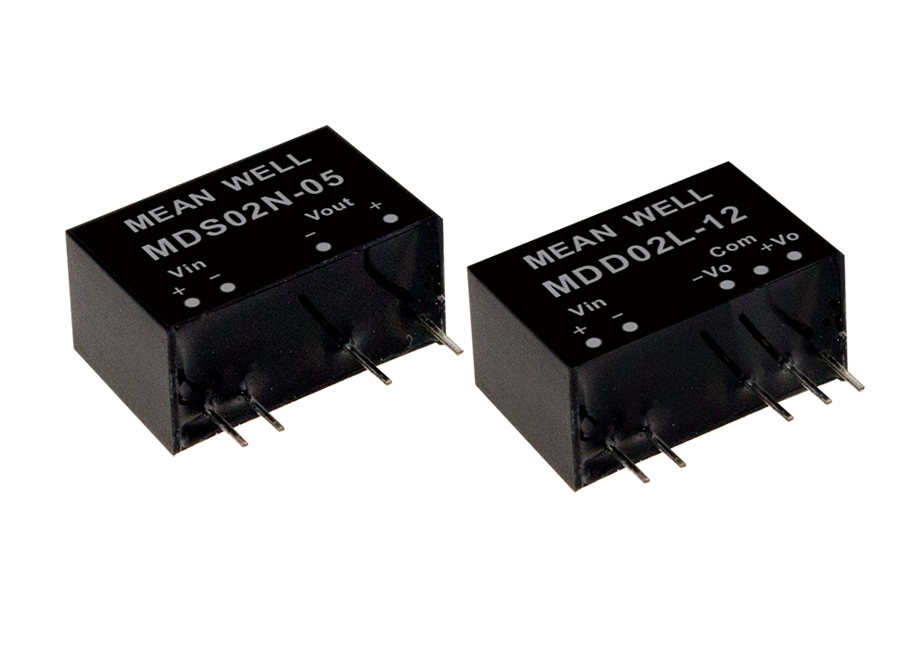

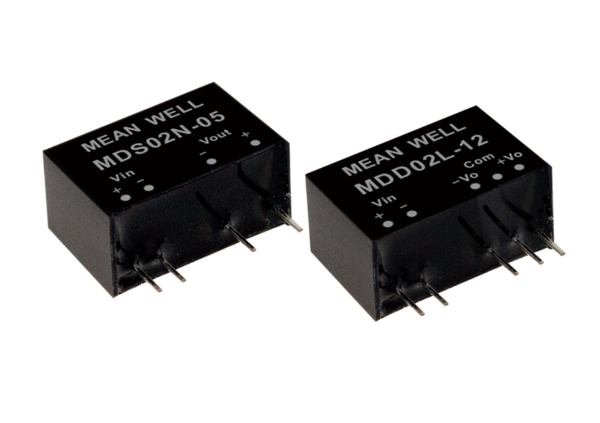

MDS02L-12 - 2W 12V 167mA SIP Package Medical Grade Unregulated Converter
MDS02L-12 is a 2W isolated and unregulated module type medical grade DC-DC converter with SIP7 package.
SKU: MDS02L-12
Categories: DC-DC Converters, Medical Power Supply, Uncategorized
Category: DC-DC ConvertersMedical Power Supply
Description
MDS02L-12 is a 2W 12V 167mA isolated and unregulated module type medical grade DC-DC converter with SIP7 package. it features international standard pins, 4.2VAC I/P-O/P hight isolation voltage and short circuit protection. With a high efficiency, MDS02L-12 is able to work at a wide temperature range of -40~+85°C. This product is suitable for medical systems with ultra low leakage current.
Additional information
Weight | 0.42 kg |
---|---|
Current (amps) | 167mA |
Power (watts) | 2W |
Type | DC/DC,Medical Grade,Module |
Voltage (max/rated) | 12VDC |
Range Power |
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | |
---|---|---|---|---|
MDS02L-05 | 2W | 5VDC | 400mA | Request Quote |
MDS02L-12 | 2W | 12VDC | 167mA | Request Quote |
MDS02L-15 | 2W | 15VDC | 133mA | Request Quote |
MDS02M-05 | 2W | 5VDC | 400mA | Request Quote |
MDS02M-12 | 2W | 12VDC | 167mA | Request Quote |
MDS02M-15 | 2W | 15VDC | 133mA | Request Quote |
MDS02N-05 | 2W | 5VDC | 400mA | Request Quote |
MDS02N-12 | 2W | 12VDC | 167mA | Request Quote |
MDS02N-15 | 2W | 15VDC | 133mA | Request Quote |
