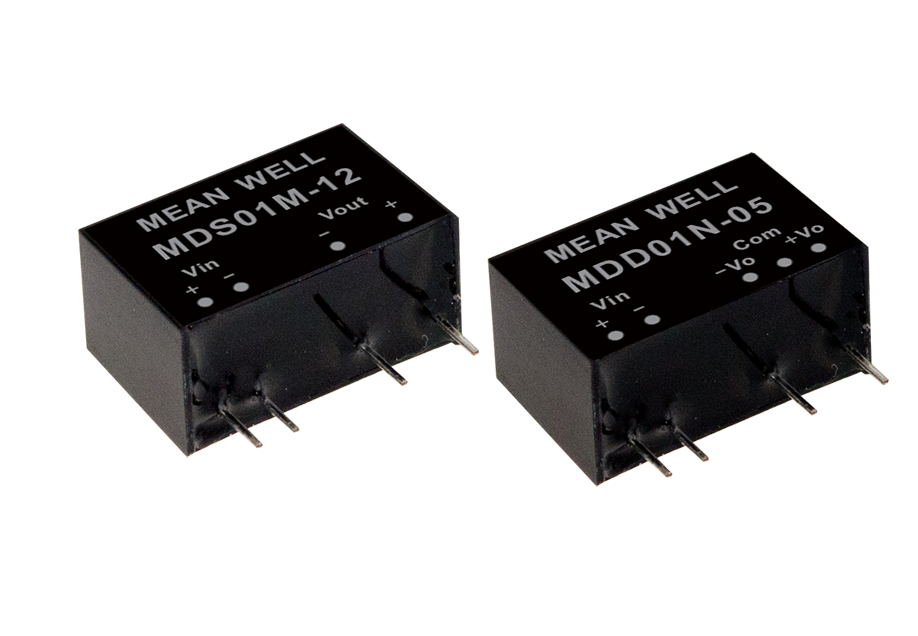

MDS01L-12 is a 1W 12V 84mA isolated and unregulated module type medical grade DC-DC converter with a SIP7 package. It features international standard pins, 6KVDC or 4.2VAC I/P-O/P hight isolation voltage and short circuit protection. MDS01L-12 has a high efficiency up to 77% and works at a wide temperature range of -40~+85°C. This product is suitable for medical systems with ultra-low leakage current.
SIP7 package with international standard pinout
Operating temperature range -40~ +85°C
Medical safety approved (1xMOPP/2xMOOP) according to ANSI AAMI ES60601 1
Low patient leakage current <2μA
Protection: Short circuit (3 second max.)
6KVDC or 4.2KVAC hight I/O isolation (Reinforced isolation)
