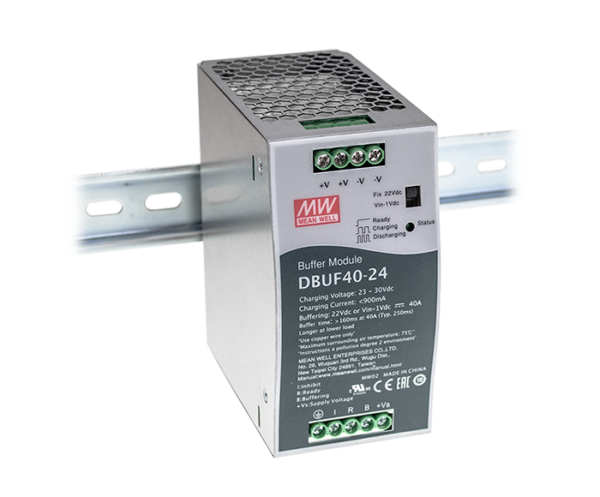

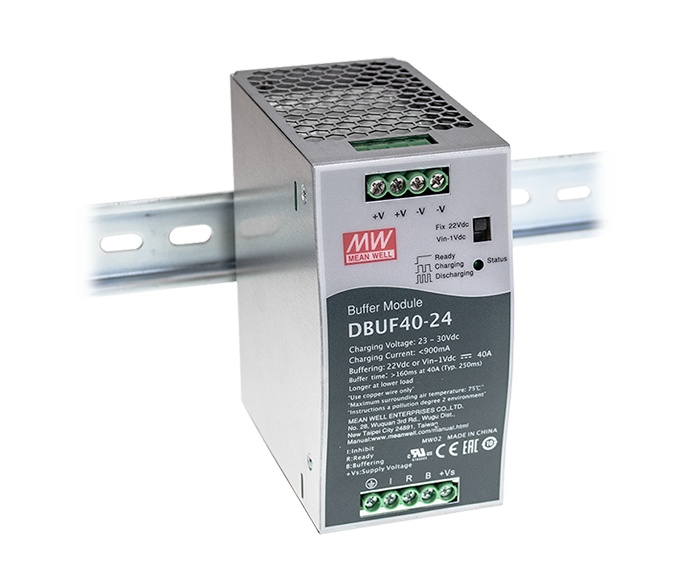

DBUF40-24 - 24V/40A DIN Rail Type Buffer Module

The DBUF40-24 is a DIN Rail mounted 40A buffer module which can be used with DIN rail power supplies to provide short term back up for the load.

Email

Description

The DBUF40-24 buffer is a supplementary device for regulated DC 24V power supplies.

The buffer module utilises maintenance free electrolytic capacitors to store energy, thus eliminating the need of periodic replacement as compared to costlier batteries which also have shorter functional life span.

The DBUF40-24 comes with comprehensive protection features like over voltage, over current and short circuit protections.

Buffer modules can be connected in parallel to increase the output ampacity or the hold up time.

Additional information

Type

Buffer Module,DC/DC,Din-Rail

  • Buffering with electrolytic capacitors instead of lead acid batteries
  • Type buffering time of 250ms @ 22VDC/40A
  • Buffer mode selectable by switch: Fixed mode at 22VDC – Dynamic mode for Vin-1 VDC
  • LED indicator for signal status
  • Supports parallel connection to extend buffering time
  • Cooling by free air convection
  • -25~+75°C wide operating temperature
  • 3 years warranty
  • Industrial control system
  • Semiconductor fabrication equipment
  • Factory automation
  • Electromechanical apparatus
