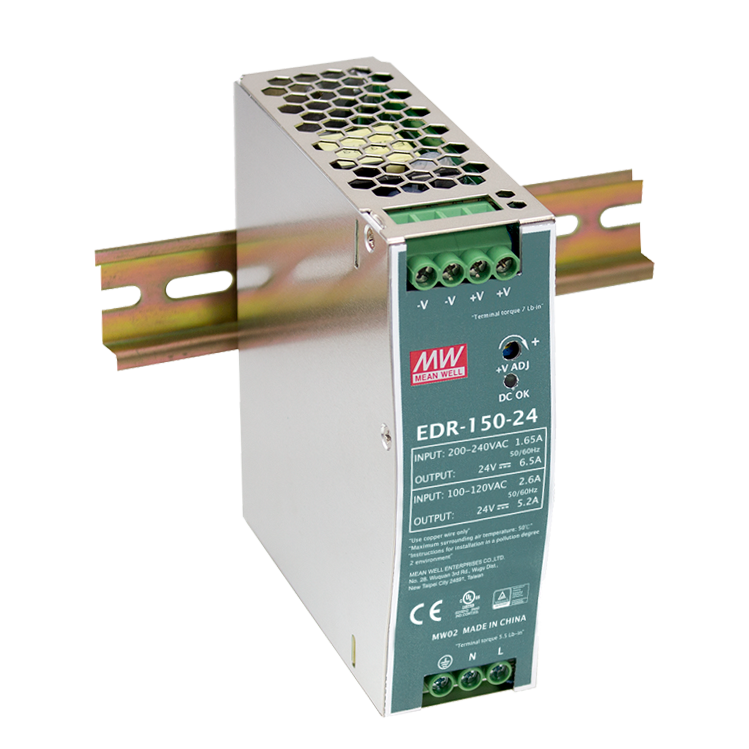

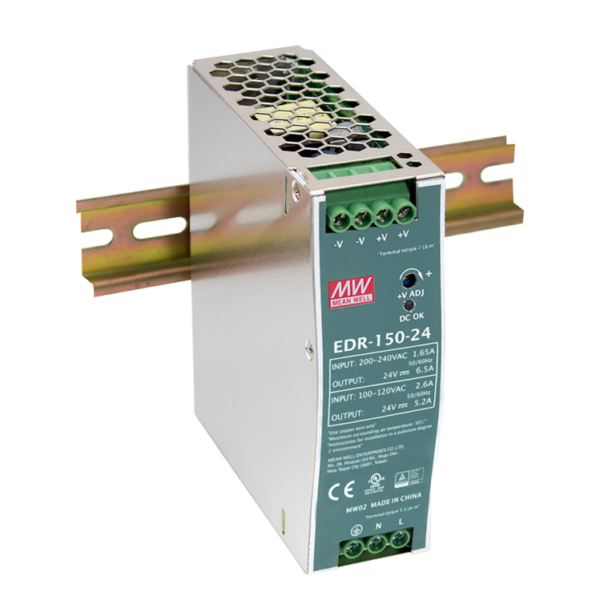

EDR-150-24 - EDR-150-24 24V 6.5A 156W Industrial Din Rail Power Supply

EDR-150-24 24V 6.5A 156W industrial din rail power supply is designed at 40mm width to save space within din rail cabinets and operates at a constant current mode for over load protection.

Email

Description

EDR-150-24 is an economical slim din rail power supply, providing up to 156W at 230VAC input. The unit can be installed on TS-35/7.5 or TS-35/15 mounting rails and the body us designed 40mm in width, which allows space saving inside cabinets. EDR-150-24 has full range input from 90VAC to 264VAC and conforms to EN61000-3-2 (<80% load), the norm for European Union regulations on harmonic current.

EDR-150-24 is designed with a metal housing that enhances the units power dissipation. With working efficiency up to 87% the unit can operate a ambient temperatures between -20°C and +60°C by free air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus make EDR-150-24 a very competitive power supply solution for industrial applications.

Additional information

Weight 0.75 kg
Power (watts)

120W

Type

AC/DC,Din-Rail

Range Power

Outputs

Single

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 2 years warranty
  • Industrial control system
  • Semiconductor fabrication equipment
  • Factory automation
  • Electro-mechanical apparatus
