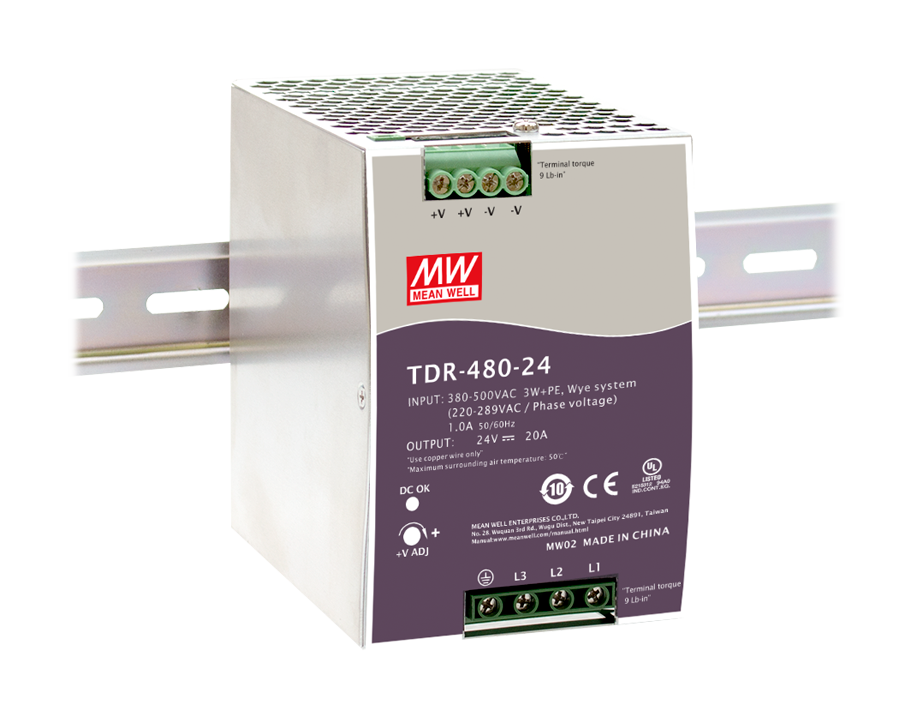

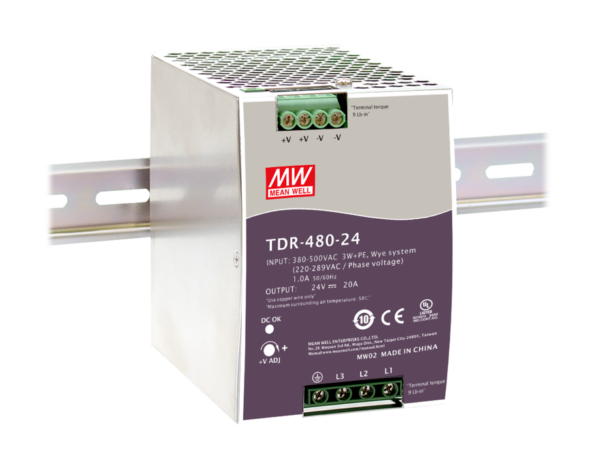

TDR-480-24 - TDR-480-24 480W 24V 20a Three Phase Industrial Din Rail Power Supply
TDR-480-24 is a 480W 24V 20A Three Phase Industrial Din Rail Power Supply
Additional information
| Weight | 1.50 kg |
|---|---|
| Current (amps) | 20A |
| Efficiency (%) | 94% |
| Inputs | 340 ~ 550VAC |
| Power (watts) | 480W |
| R&N (mV) | 150mV |
| Type | AC/DC,Din-Rail |
| Voltage (max/rated) | 24VDC |
| Range Power | |
| Outputs | Single |
| warranty |
- Three-Phase wide input range
- Built-in Active PFC function
- Short circuit, over load, over voltage, over temperature protections
- Free air convection cooling
- Optional DC OK relay contact
