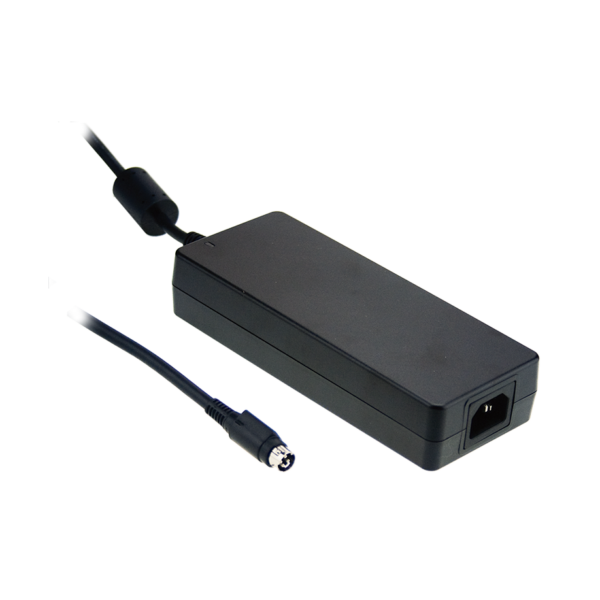

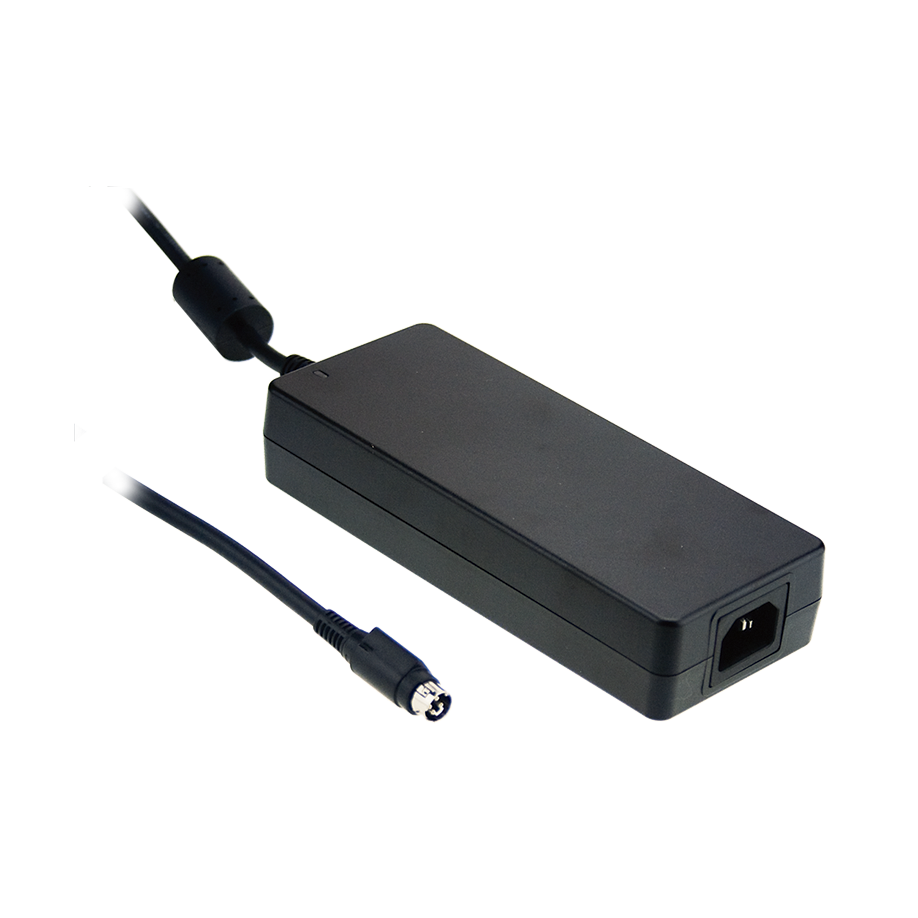

GST160A series - 160W series AC-DC High Reliability Industrial Adaptor

The GST160A series is a highly reliable 160W single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet with an input range from 85VAC to 264VAC.

Email

Description

The GST160A series is a highly reliable 160W single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet with an input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With an efficiency of up to 94% and the extremely low no-load power consumption below 0.15W. The GST160A series is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and Code of Conduct (CoC) Version 5. Other features included this unit allows the adaptor to save energy when it is either in operation or standby.
The entire series utilises a 94V-0 flame retardant plastic case.
The GST130A series is certified by international safety regulations.

Additional information

Efficiency (%)

90%, 91%, 92%, 93%, 94%

Inputs

120 ~ 370VDC, 85 ~ 264VAC

Outputs

Single

Power (watts)

138W, 144W, 160W

Standards

AS/NZS 60950.1, BIS IS13252, BSMI CNS14336, CCC GB4943, CSA C22.2, EAC TP TC 004 approved; SIRIM MS IEC60950-1, KC K60950-1, PSE J60950-1, TUV EN60950-1, UL60950-1

• Global Certificates
• Universal AC input / Full range
• 3 pole AC inlet IEC320-C14
• Built-in active PFC function
• No load power consumption <0.15W
• Energy efficiency level VI
• Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP
and CoC Version 5
• Class I power (with earth pin)
• Protections: Short circuit / Overload / Over voltage / Over Temp
• Fully enclosed plastic case
• Fanless design with -30~+70°C working temperature
• LED indicator for power on
• 3 years warranty

• Consumer eletronic devices
• Telecommunication devices
• Office facilities
• Industrial equiptment

  • AS/NZS 60950.1
  • BIS IS13252
  • BSMI CNS14336
  • CCC GB4943
  • CSA C22.2
  • EAC TP TC 004 approved; SIRIM MS IEC60950-1
  • KC K60950-1
  • PSE J60950-1
  • TUV EN60950-1
  • UL60950-1
