MEAN WELL Products

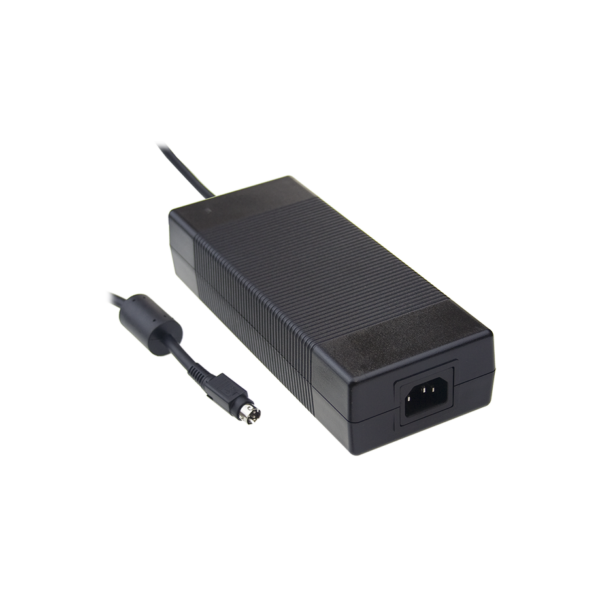

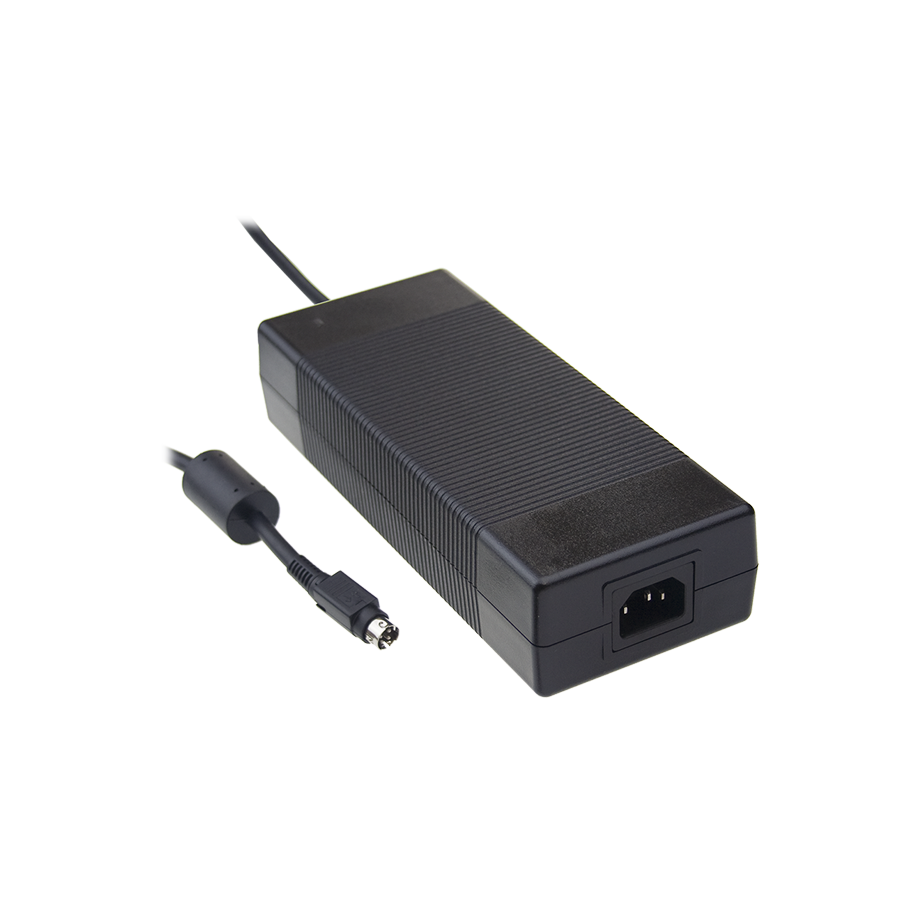

GSM220A series - 220W Series AC-DC Medical Power Supply Adaptor
The GSM220A is a 220W single-output medical power supply adaptor series. This product is equipped with a 3-Pin standard IEC320-C14 power plug and input range of 80V DC to 264V DC.
Description
The GSM220A is a 220W single-output medical power supply adaptor series. This product is equipped with a 3-Pin standard IEC320-C14 power plug and input range of 80V DC to 264V DC.
The series supplies different models with output voltages ranging between 12V DC and 48V DC that can satisfy the demands for various kinds of medical devices. With an efficiency of up to 94.5% and an extremely low no-load power consumption of below 0.15W, the GSM220A series is compliant with EIS7 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, meets Code of Conduct (CoC) Version 5 and the international medical standards. The supreme feature allows the adaptor to save energy when it is either under operation mode or standby. The entire series utilizes the 94V-0 flame retardant plastic case.
Additional information
| Inputs | 200 ~ 240VAC |
|---|---|
| Power (watts) | 201W,220W,221W,180W |
| Standards | EN61000-3-2 |
| Type | AC/DC,Desktop,Medical Grade |
| Range Power | |
| Outputs | Single |
3 pole AC inlet IEC320-C14, Class I power unit
Medical safety approved (2xMOPP) according to
ANSI/AAMI ES60601-1 and IEC/EN60601-1
Extremely Low leakage current
No load power consumption <0.15W Energy efficiency level VI and meets CoC Version 5 -30 ~ +70°C wide range working temperature Protections: Short circuit / Overload / Over voltage /Over temperature LED indicator for power on Lifetime >80K hours
3 years warranty
Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breathing machine
Medical computer monitor
- EN61000-3-2
