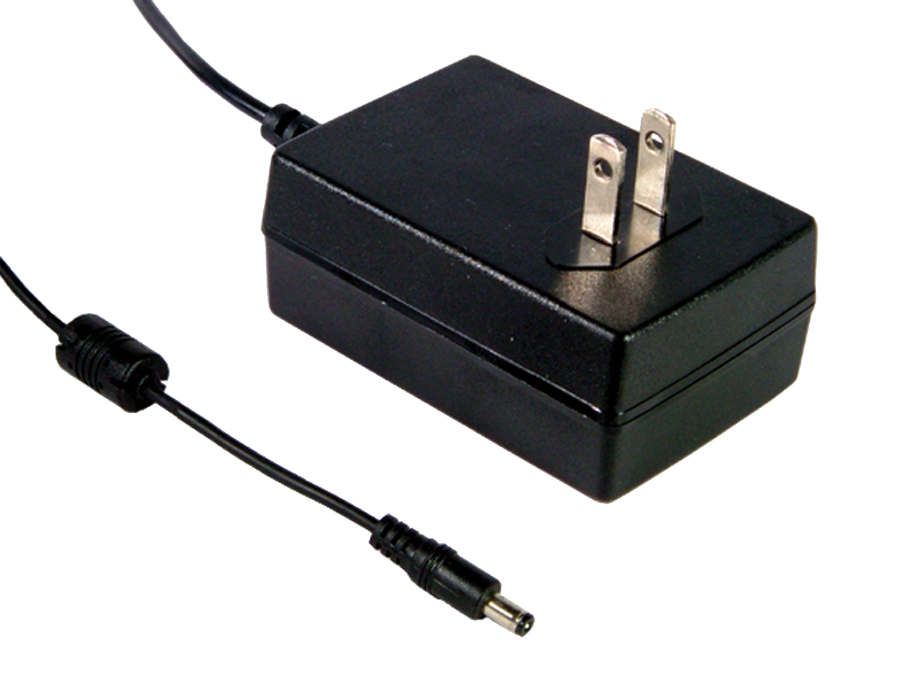

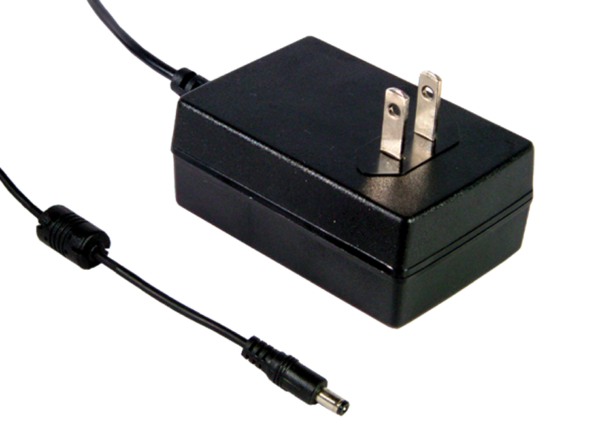

GSM36U series - 36W Series AC-DC High Reliability Medical Adaptor
The GSM36U series is a highly reliable 36W wall-mounted style single-output green medical adaptor. This unit is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC.
Description
The GSM36U series is a highly reliable 36W wall-mounted style single-output green medical adaptor. This unit is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra-low leakage current (<50µA), making the unit suitable for applications with direct contact with patients.
These units have an efficiency of up to 88% and an extreme low no-load power consumption below 0.1W, The GSM36U series is compliant with USA EISA 2007/DoE and Canada NRCan; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.
The GSM36U series is approved with the international medical safety certificates.
Additional information
| Inputs | 113 ~ 370VDC,80 ~ 264VAC |
|---|---|
| Plug | USA 2 Pin |
| Power (watts) | 9W,7.5W,24W,18W,12W,5W,48W,15W |
| Standards | ES60601-1-11 |
| Type | AC/DC,Medical Grade,Plugtop |
| Range Power | |
| Outputs | Single |
Universal AC input/ full range
2 pole USA plug
Medical safety approved (2 x MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
Low Leakage current <50µA
No load power consumption <0.1W
Energy efficiency Level VI (except 5~9V for Level V)
Comply with EISA 2007/DoE and NRCan
High efficiency up to 88%
High operation temperature up to +60ºC
Class II power (without earth pin)
Protections: Short circuit/ Overload/ Overvoltage
Fully enclosed plastic case
LED indicator for power on
Optional lock type DC plug
100% full load burn-in test
3 years warranty
Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device
- ES60601-1-11
