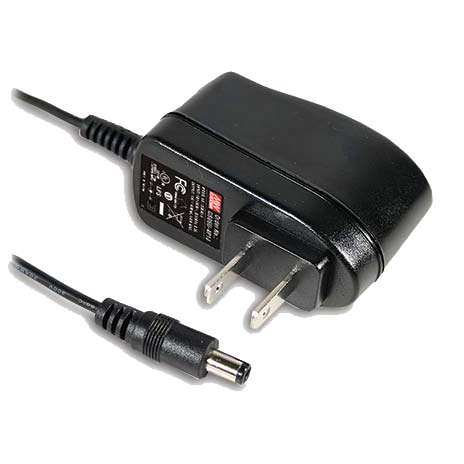

GS06U series - 6W AC-DC Industrial Adaptor – US 2 Pin AC Plug

The GS06U series is a 6W wall-mounted style single-output adaptor series. This product is a class II power unit (no FG), equipped with a 2-Pin standard USA AC power plug, adopting the input range from 90V AC to 264V AC.

Email

Description

The GS06U series is a 6W wall-mounted style single-output adaptor series. This product is a class II power unit (no FG), equipped with a 2-Pin standard USA AC power plug, adopting the input range from 90V AC to 264V AC.
The series supplies different models with output voltages ranging between 5V DC and 48V DC that can satisfy the demands for various types of consumer electronic devices. With an efficiency of up to 85% and an extremely low no-load power consumption of below 0.075W, the GS06U series is compliant with USA EISA 2007/DoE. The supreme feature allows the adaptor to save energy when is either under the operating mode or the standby mode. The entire series utilises the 94V – 0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.

Additional information

Function

Level VI

Inputs

127 ~ 370VDC,90 ~ 264VAC

Plug

USA 2 Pin

Type

AC/DC,Plugtop

Range Power

Outputs

Single

Universal AC input/Full range
2 pole US plus, Class II power unit
No load power consumption <0.075W
Energy efficiency level VI
Comply with EISA 2007/DoE
Protections: Short circuit/Overload/Over voltage
Fully enclosed plastic case
Pass LPS
2 Years Warranty

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equiptments
