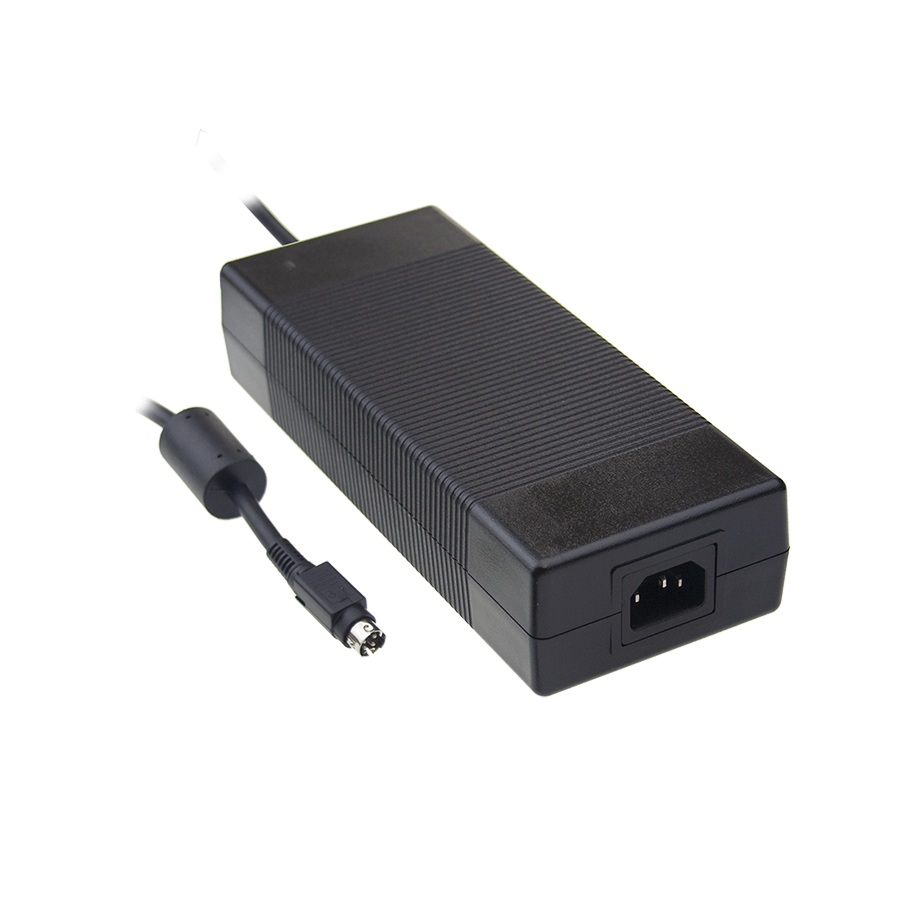

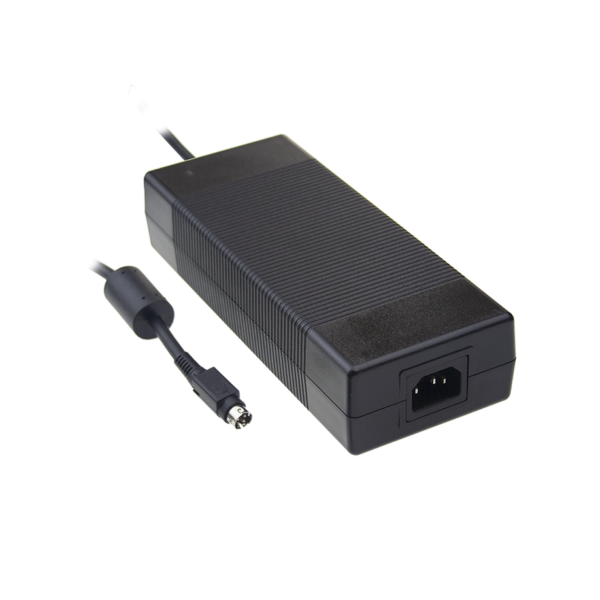

GST220A Series - 220W Series AC-DC High Reliability Industrial Adaptor
The GST220A series is a highly reliable 220W single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet with an input range from 85VAC to 264VAC.
Description
The GST220A series is a highly reliable 220W single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet with an input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With an efficiency of up to 94.5% and the extremely low no-load power consumption below 0.15W. The GST220A series is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and Code of Conduct (CoC) Version 5. Other features included this unit allows the adaptor to save energy when it is either in operation or standby.
The entire series utilises a 94V-0 flame retardant plastic case.
The GST130A series is certified by international safety regulations.
Additional information
| Inputs | 120 ~ 370VDC,85 ~ 264VAC |
|---|---|
| Power (watts) | 201W,220W,221W,180W |
| Standards | CCC GB4943 |
| Technology | Level VI |
| Type | AC/DC,Desktop,Industrial |
| Range Power | |
| Outputs | Single |
Global Certificates
Universal AC input / Full range
3 pole AC inlet IEC320-C14
Built-in active PFC function
No load power consumption <0.15W
Energy efficiency level VI
Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP
and CoC Version 5
Class I power (with earth pin)
Protections: Short circuit / Overload / Over voltage / Over Temp
Fully enclosed plastic case
Fanless design with -30~+70°C working temperature
LED indicator for power on
3 years warranty
Consumer eletronic devices
Telecommunication devices
Office facilities
Industrial equiptment
- CCC GB4943
