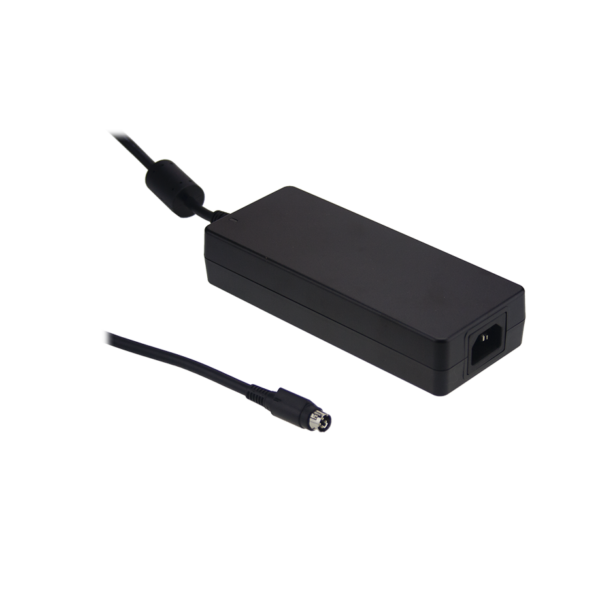

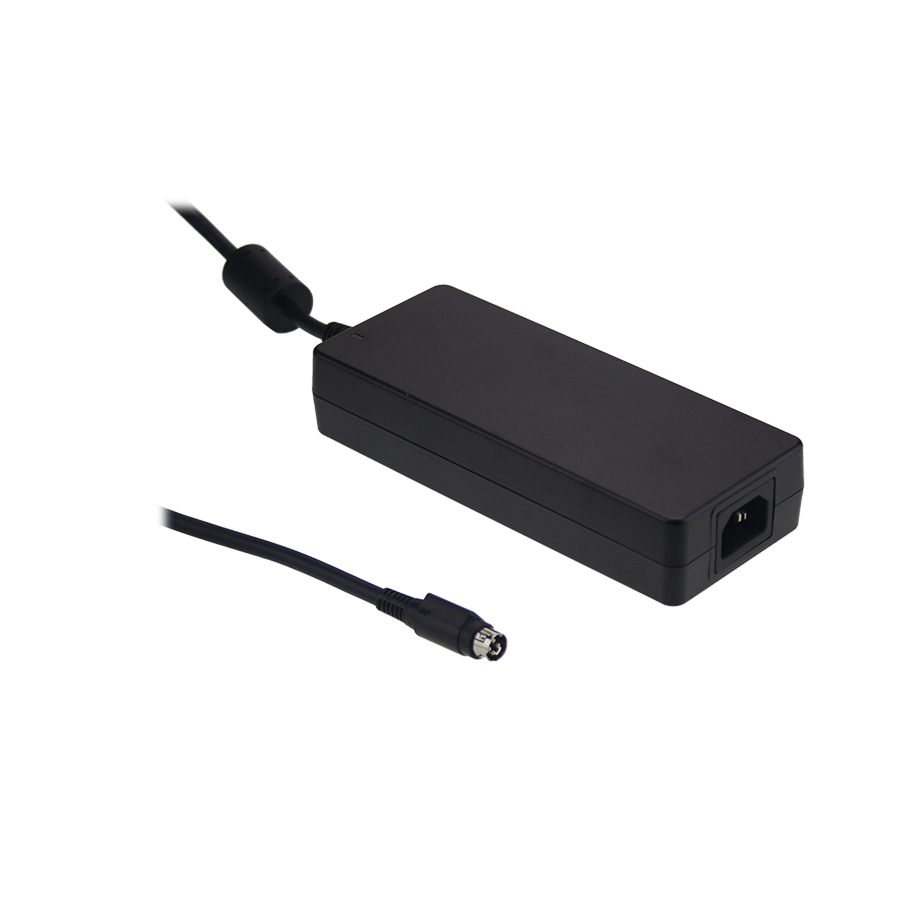

GSM160A series - 160W AC-DC Reliable Green Medical Adaptor Series

GSM160A is a highly reliable, 160W desktop single-output green medical adaptor series. This product is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80V AC to 264V AC.

Email

Description

GSM160A is a highly reliable, 160W desktop single-output green medical adaptor series. This product is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80V AC to 264V AC. The entire series supplies different output voltages between 12V DC and 48V DC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (100µA), fitting the medical devices in direct electrical contact with the patients.
With the efficiency of up to 94% and the extremely low no-load power consumption of below 0.15W, the GSM160A is compliant with USE EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets the Code of Conduct (CoC) Version 5. The Supreme features allow the adaptor to save energy when it is either under the operation mode or on the standby mode. The entire series utilises the 94V-0 flame retardant plastic case.
The GSM160 Series is approved with the international medical safety certificates.

Additional information

Efficiency (%)

90%, 91%, 92.50%, 93%, 94%

Inputs

80 ~ 264VAC

Outputs

Single

Power (watts)

138W, 144W, 160W

Standards

EN55011 (CISPR11) (Class A & B), EN55024, EN60601-1-2, EN61000-3-2 (Class A), EN61000-3-3, EN61204-3

3 pole AC inlet IEC320-C14, Class I power unit
Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
Extremely Low leakage current
No load power consumption <0.15W Energy efficiency level VI and meets CoC Version 5 -30 ~ +70°C wide range working temperature Protections: Short circuit / Overload / Over voltage /Over temperature LED indicator for power on Lifetime >85K hours
3 years warranty

Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breath machine
Medical computer monitor

  • EN55011 (CISPR11) (Class A & B)
  • EN55024
  • EN60601-1-2
  • EN61000-3-2 (Class A)
  • EN61000-3-3
  • EN61204-3
