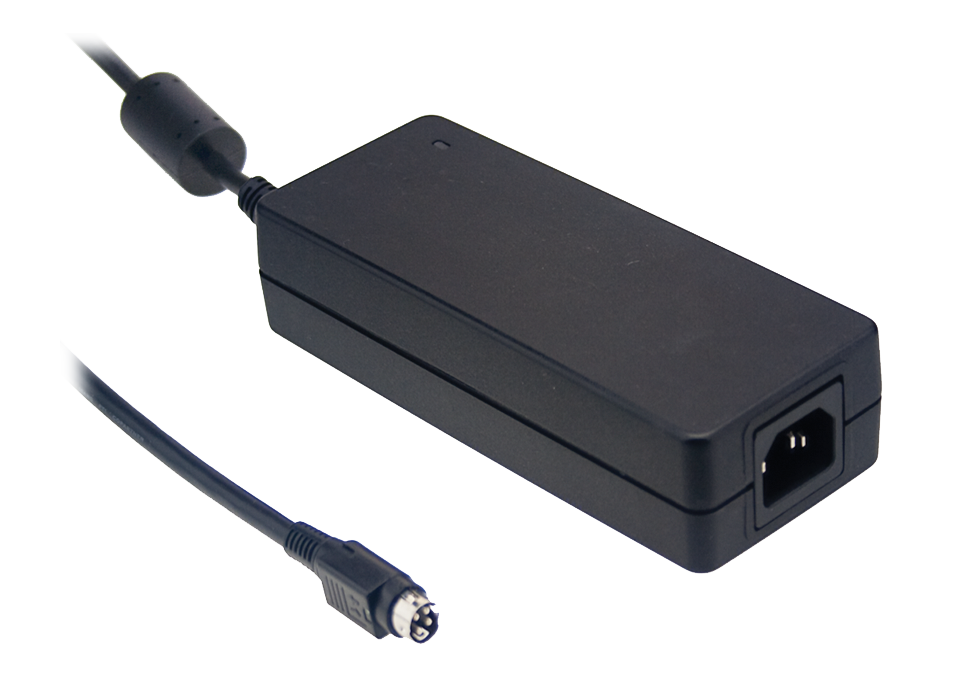

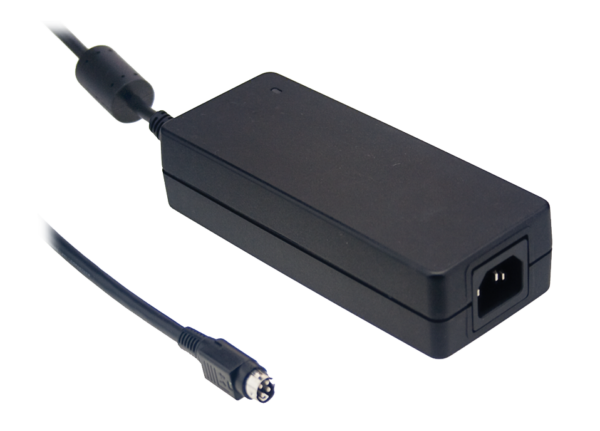

GST120A48-P1M - 120W 48V 2.5A Greenmode Level VI Desktop Power Supply

GST120A48-P1M is a 120W 48V 2.5A Greenmode Level VI Desktop Power Supply

Email

Description

GST120A48-P1M is a greenmode desktop power supply, with 120W 48V 2.5A output, designed to comply with Level VI efficiency regulations and equipped with a no load power consumption of less than 0.15W. The unit is enclosed within a 94V-0 flame retardant case, fitted with an IEC320-C13 AC inlet and 2.5 x5.5 x11mm, centre positive, tuning fork type connector. Other features include built-in active PFC, fanless design, wide operating temperature range of -30C to +70C and protections for short circuit, over load, over voltage and over temperature.

GST120A48-P1M is compliant with EISA 2007/DoE, NRCan, MEPS, ErP and CoC Version 5 as well as being certified to UL, cUL, TUV, BSMI, CCC, PSE, CB, FCC & CE making it ideally suited for use with various types of consumer electronic devices, telecommunication devices, office facilities, industrial equipment and all kinds of equipment or systems requiring compliance to the energy regulations

Additional information

Weight 0.68 kg
Current (amps)

2.5A

Efficiency (%)

91%

IEC 320

C14

Power (watts)

120W

R&N (mV)

240mV

Technology

Level VI

Type

AC/DC,Desktop,Industrial

Voltage (max/rated)

48VDC

Range Power

Outputs

Single

  • Universal full AC input range
  • IEC320-C13 AC inlet
  • No load power consumption <0.15W
  • Energy efficiency Level VI
  • Short circuit, over load, over voltage and over temperature protections
  • LED indicator for power on
  • Compliance to EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
  • R7B DC Plug, 4 pin DIN with lock, on 12V & 15V models; P1M DC Plug, 2.5 x 5.5 x 11mm centre positive tuning fork on all other models
  • Telecommunication devices
  • Office facilities, such as printers
  • Industrial equipment
  • Consumer electronic devices
