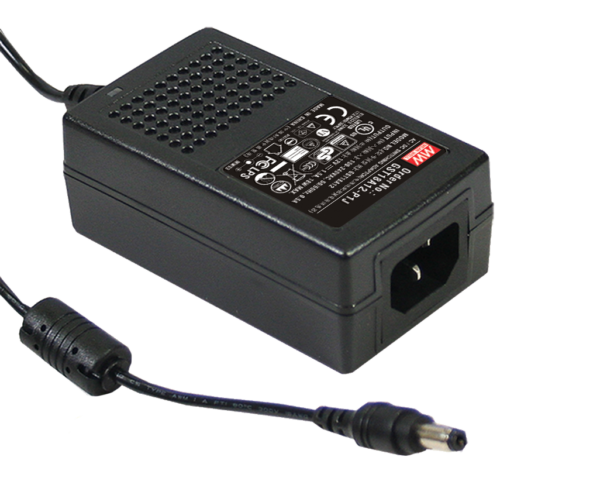

GST25E series - 25W Series AC-DC Industrial Adaptor

The GST25E series is a highly reliable 25W wall-mounted style single-output green adaptor. This unit is a class II power unit equipped with a 2-pin (no FG) standard European AC power plug, adopting the input range from 85VAC to 264VAC.

Email

Description

The GST25E series is a highly reliable 25W wall-mounted style single-output green adaptor. This unit is a class II power unit equipped with a 2-pin (no FG) standard European AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of consumer electrical devices.
These units have an efficiency of up to 89% and an extreme low no-load power consumption below 0.075W, The GST25E series is compliant with EU ErP, and Code of Conduct (Coc) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.

The GST25E series is certified for the international safety regulations.

Additional information

Inputs

85 ~ 264VAC

Plug

EURO 2 Pin

Power (watts)

23W,20W,25W,22W

Standards

BSMI

Technology

Level VI

Type

AC/DC,Industrial,Plugtop

Range Power

Outputs

Single

• Universal AC input/ full range
• 2 pole EU plug
• No load power consumption <0.075W
• Energy efficiency Level VI
• Comply with EU ErP and Code of Conduct (CoC)
• High efficiency up to 89%
• High operation temperature up to +70ºC
• Class II power (without earth pin)
• Protections: Short circuit/ Overload/ Overvoltage
• Fully enclosed plastic case
• LED indicator for power on
• PASS LPS
• 3 years warranty

• Consumer eletronic devices
• Telecommunication devices
• Office facilities
• Industrial equiptment

  • BSMI
