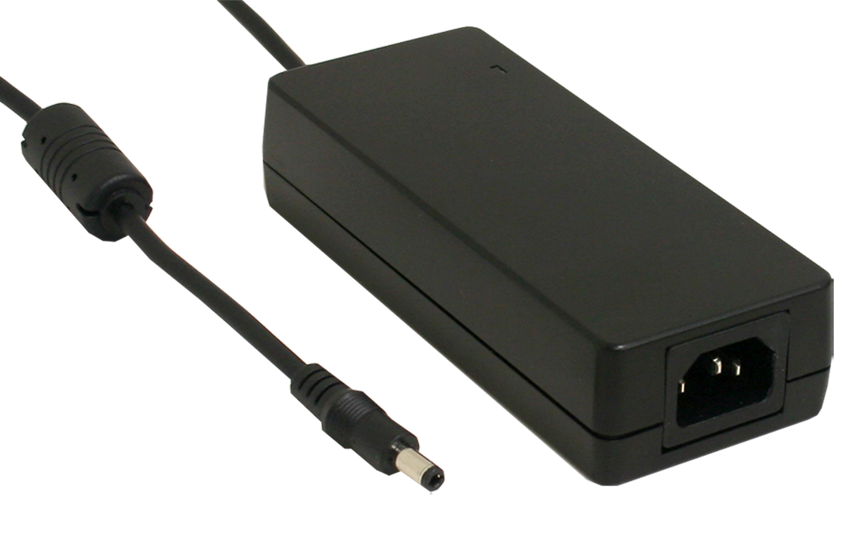

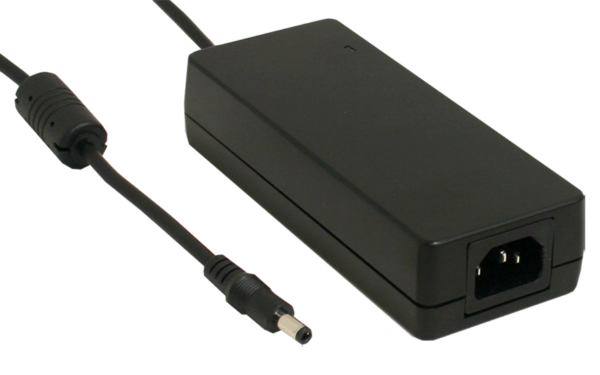

GST90A Series - 90W AC-DC Single Output Level VI Green Desktop Adaptor

Email

Description

GST90A Series are high reliability 90W greenmode Level VI desktop power supplies, designed as Class I (with FG) and IEC320 C13 AC inlet. The Series adopts the input range of 90VAC to 264VAC and offers output voltages ranging between 12VDC and 48VDC to satisfy the demands of various types of consumer electronics. These 90W greenmode Level VI desktop power supplies have efficiency up to 91% and extremely low no load power consumption, of below 0.15W. The stand out feature of GST90A Series is the energy efficiency Level VI, which ensures the unit is as efficient as possible when in either operating mode or standby mode. GST90A Series is also certified to international safety regulation standards and compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP and Code of Conduct (CoC) version 5.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

CB, CCC-, CE, CNS, CUL, FCC, Level VI, PFC, TRIGS, TUV PSE, TUV Verified Energy Performance

Type

AC/DC

Outputs

Single

IEC 320

C13

Technology

Switchmode

Inputs

90~264Vac

  • Universal full AC input range
  • IEC320-C14 AC inlet
  • No load power consumption <0.15W
  • Energy efficiency Level VI
  • Short circuit, over load, over voltage and over temperature protections
  • LED indicator for power on
  • Compliance to EISA 2007/DoE, NRCan, AU/NZ MEPS, EU Erp and CoC Version 5
  • Telecommunication devices
  • Office facilities, such as printers
  • Industrial equipment
  • Consumer electronic devices
  • CB
  • CCC-
  • CE
  • CNS
  • CUL
  • FCC
  • Level VI
  • PFC
  • TRIGS
  • TUV PSE
  • TUV Verified Energy Performance
