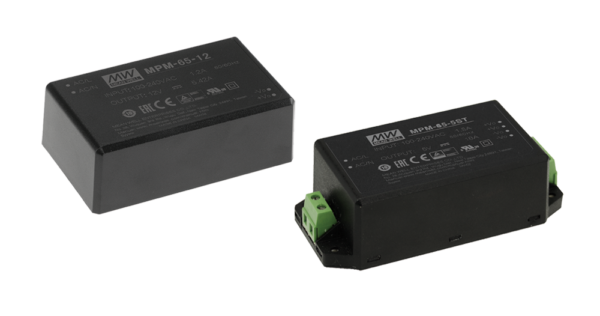

MPM-65-5 - MPM-65-5 MPM-65-5 Series 65W AC-DC High Reliable PCB Mount Green Medical Power Module
MPM-65-5 Series is a 65W high density and small size AC/DC PCB mount type medical grade power supply, suitable for various medical applications including portable medical devices and medical examination instruments.
Description
MPM-65-5 Series is a 65W high density, small size AC/DC PCB mount type medical grade power supply.Operating at 80~264VAC, a low no load power consumption and a high efficiency up to 93%, the MPM-65-5 is ideally suited to BF type medical devices and relevant equipment.The device also offers Class II double insulation, outstanding dissipation, 5G anti vibration, high EMC performance and 4KVAC isolation.Additionally, the design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three, with 2 x MOPP level and ultra low leakage current. For more information and to discuss your requirements, please contact us.
Additional information
| Weight | 0.19 kg |
|---|---|
| Current (amps) | 10A |
| Efficiency (%) | 86.5% |
| Inputs | 80 ~ 264VAC |
| Power (watts) | 50W |
| Type | AC/DC,Encapsulated,Medical Grade,Open Frame,PCB Mount |
| Voltage (max/rated) | 5VDC |
| Range Power | |
| Outputs | Single |
| warranty |
- No minimum load
- Protections: Short Circuit / Overload / Over temperature
- Suitable for BF application with appropriate system considerations
- Medical safety approved
- Compact Size
- Medical examination instruments
- Medical computer monitor
- Mobile clinical workstation
- Portable medical device
