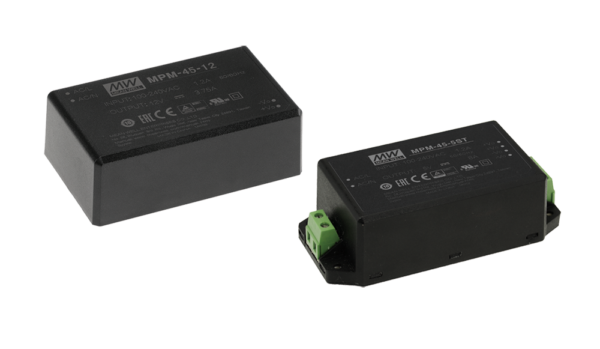

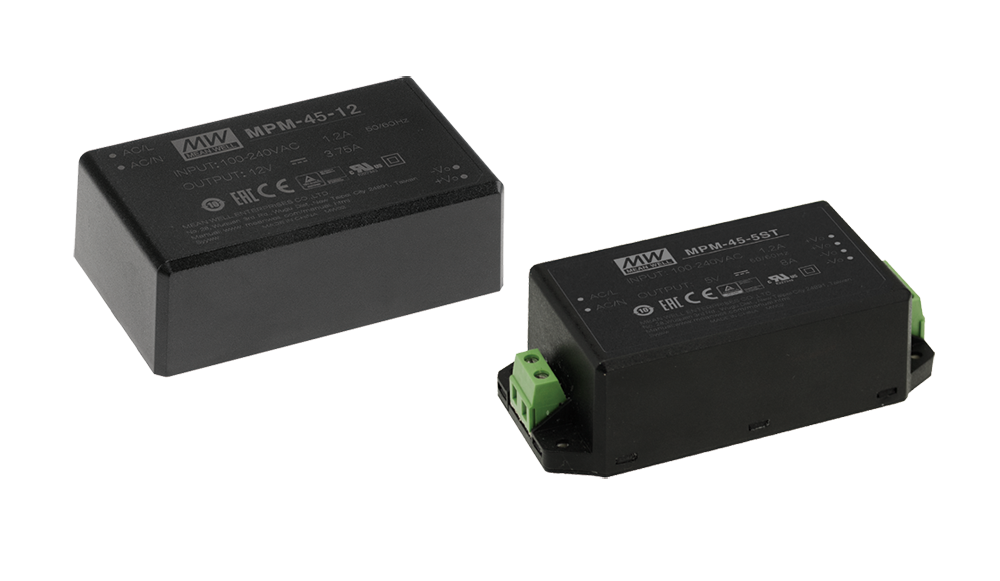

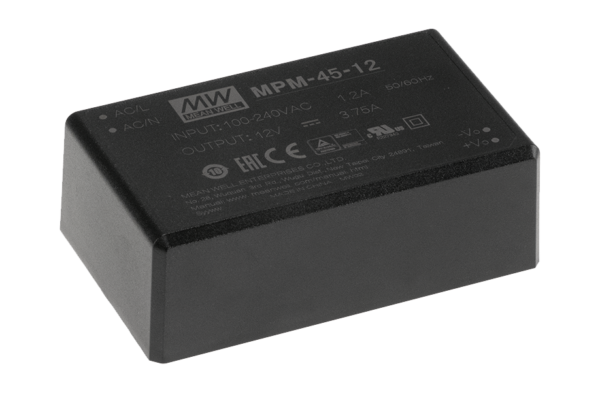

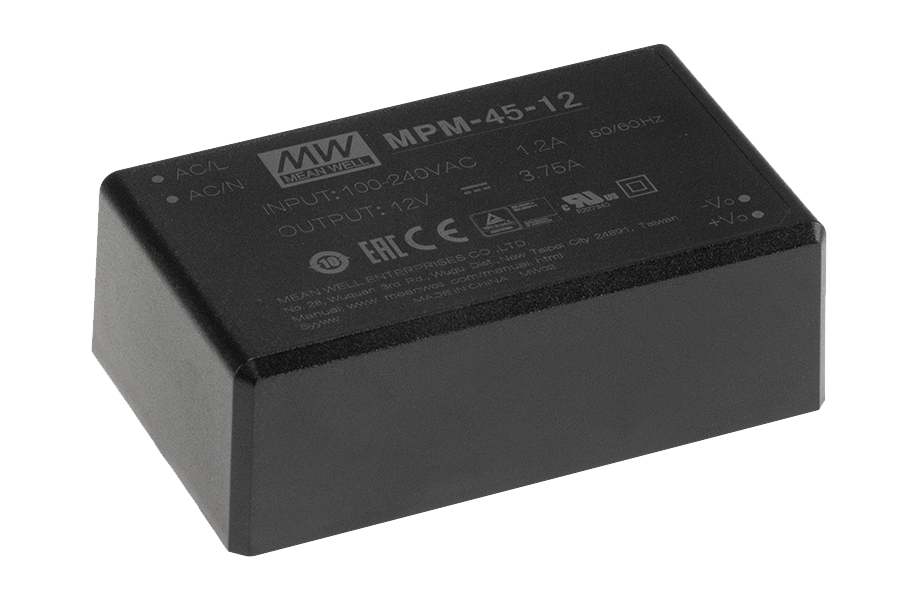

MPM-45 - MPM-45 Series 45W AC-DC High Reliable PCB-Mount Green Medical Power Module

The MPM-45 is a 45W high density AC/DC PCB mount type medical grade power supply. Featuring 80 ~ 264VAC and 2 x MOPP level, this device is perfectly suited to medical devices and equipment.

Email

Description

MPM-45 Series is a 45W high density and small size AC/DC PCB mount type medical grade power supply.

It features the operation for 80~264VAC, a low no load power consumption less than 0.1W, a high efficiency up to 92.5%, Class II double insulation, outstanding dissipation, 5G anti vibration, high EMC performance, 4KVAC isolation etc.

The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three, with 2 x MOPP level and ultra-low leakage current.

It is very suitable for BF (patient contact) type medical device or relevant equipment.

Additional information

Inputs

80 ~ 264VAC

Type

AC/DC,Encapsulated,Medical Grade,Open Frame,PCB Mount

Range Power

  • 3.43″ x 2.05″ compact size
  • PCB chassis or screw terminal mounting version
  • Medical safety approved
  • Suitable for BF application with appropriate system consideration
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temperature range -30 ~ +80°C
  • EMI Class B without additional components
  • Isolation Class II
  • Protections: short circuit / overload / over voltage
  • No minimum load required
  • Operating altitude up to 4000 meters
  • 50W peak (10 seconds)
  • 3 years warranty
  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument
