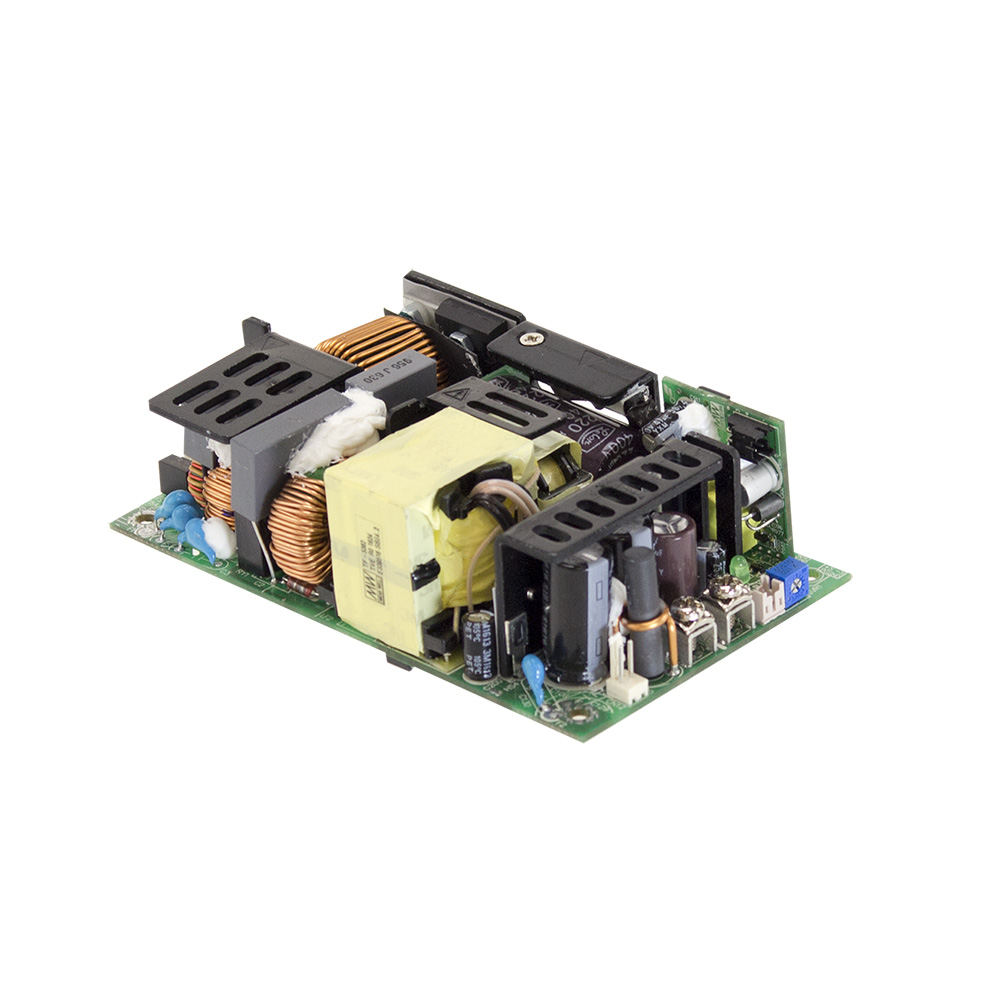

RPS-400 Series - RPS-400 Series 400W Single Output Green Medical Power Supply

The RPS-400 Series are a variation of open and enclosed PCB medical grade power supplies with 250W free air convection and 400W force air with fan options.

Email

Description

The RPS-400 Series is a variation of open and enclosed PCB medical grade power supplies with 250W free air convection and 400W force air with fan options. This series accepts an input of 80 ~ 264VAC and offers various output voltages between 12V and 48V with a working efficiency of up to 94%. The RPS-400 series also offers a low no-load power consumption of below 0.5W and is able to be fitted within both a Class I (with FG) or Class II (no FG) system design. RPS-400 series has a low leakage current of less than 160µA. This range includes variations of an open frame PCB, enclosed casing, enclosed casing with a fan on top and enclosed casing with a can on the side.

Additional information

Inputs

80 ~ 264VAC

Standards

UL AAMI

Type

AC/DC,Medical Grade,Open Frame

Range Power

Outputs

Single

• 5″ x 3″ compact size
• Medical safety approved (2 x MOPP) according to AAMI/ANSI ES60601-1
and IEC/EN60601-1
• Suitable for BF application with appropriate system configuration
• 250W convection, 400W force air
• EMI Class B for Class I and Class A for Class II configuration
• No load power consumption <0.5W by PS-ON control
• Protections: Short circuit / Overload / Over voltage/ Over Temperature
• 5Vdc standby output, 12Vdc fan supply, power good, power fail and
remote sense
• Typical Lifetime:
RPS-400 71K hours, RPS-400-C 28K hours (without fan)
RPS-400 98K hours, RPS-400-C 37K hours (with fan)
RPS-400-TF 69K hours, RPS-400SF 57K hours (with fan)
• Operating Altitude up to 4000 metres

• 3 years warranty

  • Oral Irrigator
  • Hemodialysis Machine
  • Medical Computer Monitor
  • Sleep Apnea Devices
  • Pump Machine
  • no-load Bed
  • UL AAMI
