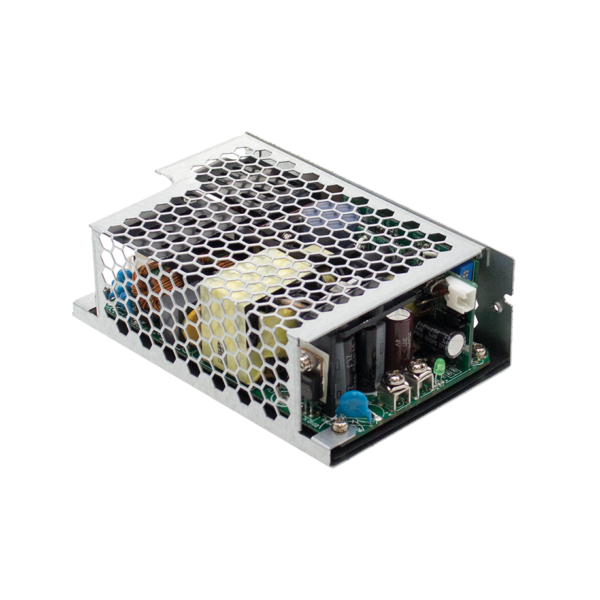

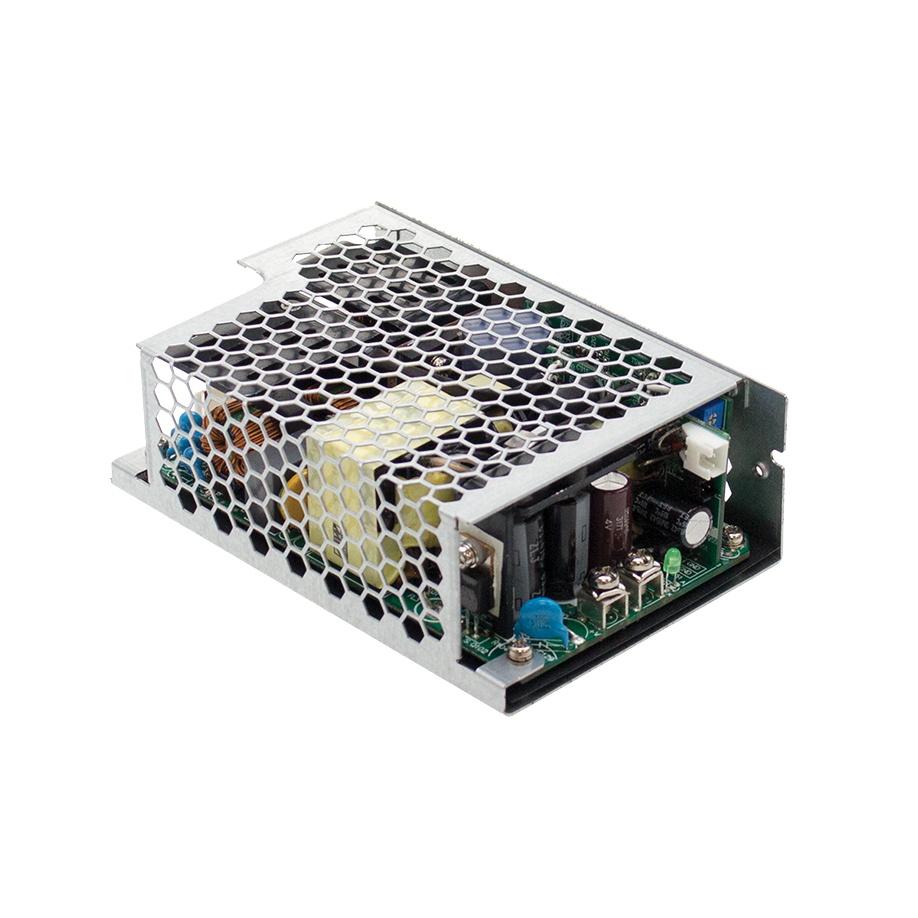

RPS-300-24-C - RPS-300-24-C 300W 24V Enclosed Single Output Green Medical Grade Power Supply

The RPS-300-24-C is a 24V 300W Enclosed medical grade power supply with high power density on a 5 X 3 footprint accepting 90 ~ 264V AC inputs and various output voltages between 12V and 48V.
Description
The RPS-300-24-C is a 24V 300W Enclosed medical grade power supply with high power density on a 5 X 3 footprint accepting 90 ~ 264V AC inputs and various output voltages between 12V and 48V.
These units have a working efficiency of up to 93%, an extremely low no-load output consumption of bellow 0.5W and an extremely low leakage current of less than 150 µA. In addition, these units meet international medial regulations 2*MOPP and EMC EN55011 allowing the units to be fitted to all BF rated patient contact medical equipment.
Additional information
Weight | 0.45 kg |
---|---|
Inputs | 127 ~ 370VDC,90 ~ 264VAC |
Power (watts) | 300W |
Standards | Radiation – Class A |
Type | AC/DC,Enclosed,Medical Grade |
Range Power | |
Outputs | Single |
5″ x 3″ miniature size
Universal AC input / Full range
Built-in active PFC function
Medical safety approved (2 x MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
No load power consumption <0.5W by PS-ON control
High Efficiency up to 93%
Protections: Short circuit / Overload / Over voltage/ Over Temperature
Cooling by free air convection for 200W and 300W with 20.5FM forced air
Built-in 12V/0.5A fan supply
Standby 5V/1A with fan, 0.6A without fan
Operating altitude up to 2000 metres
3 years warranty
Oral irrigator
Hemodialysis monitors
Medical monitors
Sleep apnea devices
Pumps machine
Electric bed
- Radiation - Class A
