RPS-300 Series - RPS-300 Series 300W Single Output Green Medical Grade Power Supply

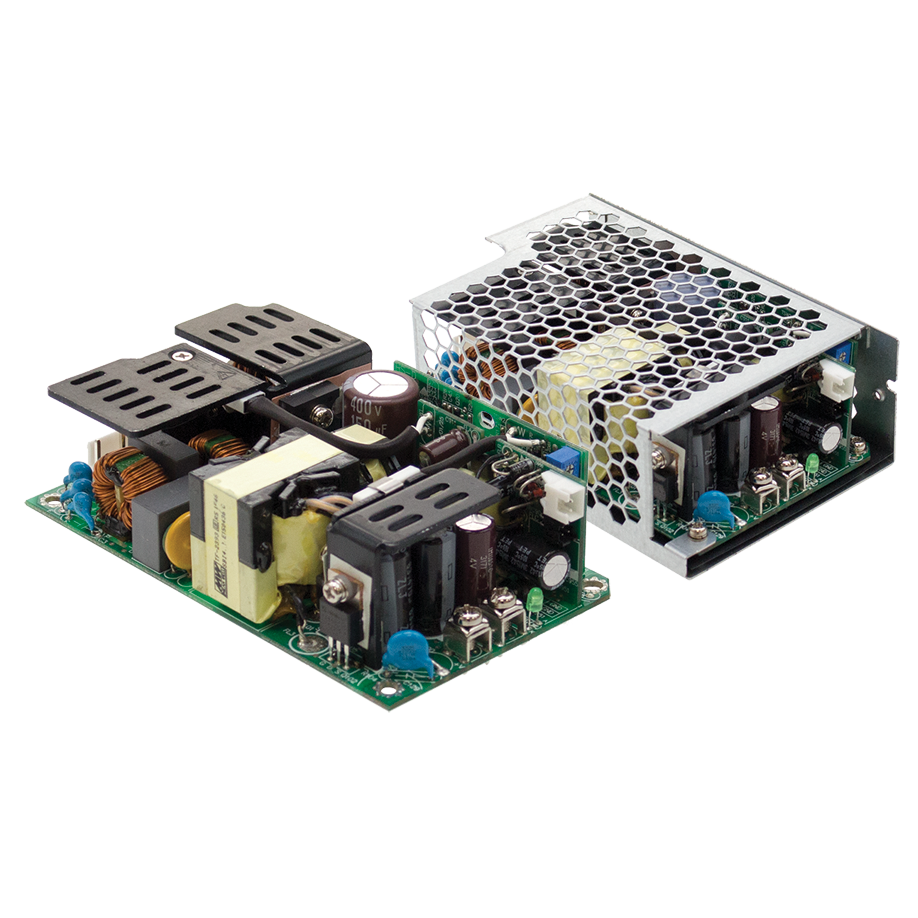

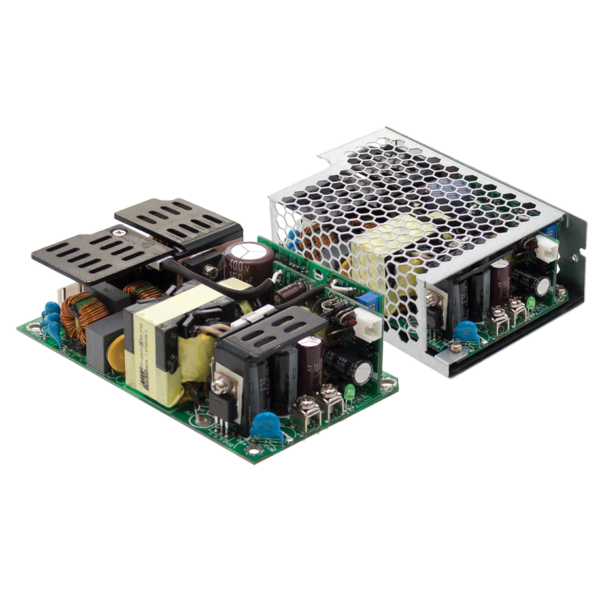

The RPS-300 Series is a 300W medical grade power supply available as a PCB or enclosed unit.

Email

Description

The RPS-300 Series is a 300W medical grade power supply available as a PCB or enclosed unit. A high power density on a 5” X 3” footprint accepting 90 ~ 264V AC inputs and various output voltages between 12V and 48V.
These units have a working efficiency of up to 93%, an extremely low no-load output consumption of bellow 0.5W and an extremely low leakage current of less than 150 µA. In addition, these units meet international medial regulations 2*MOPP and EMC EN55011 allowing the units to be fitted to all BF rated patient contact medical equipment.

Additional information

Current (amps)

11.12A, 11A, 12.5A, 12.A, 20A, 25A, 6.25A, 6A

Efficiency (%)

90%, 92%, 93%, 935%

Inputs

127 ~ 370VDC, 90 ~ 264VAC

Manufacturer

Mean Well Enterprises Ltd.

Outputs

Single

Power (watts)

300W

R&N (mV)

120mV, 150mV, 200mV, 250mV

Standards

ANSI/AAMI ES60601-1, Conduction – Class B, EN55011 (CISPR11), EN55022 (CISPR22), EN55024, EN60601-1-2 criteria A, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11,, IEC60601-1, Radiation – Class A, TUV EN60601-1

• 5″ x 3″ miniature size
• Universal AC input / Full range
• Built-in active PFC function
• Medical safety approved (2 x MOPP between primary to secondary)
• Suitable for BF application with appropriate system consideration
• No load power consumption <0.5W by PS-ON control
• High Efficiency up to 93%
• Protections: Short circuit / Overload / Over voltage/ Over Temperature
• Cooling by free air convection for 200W and 300W with 20.5FM forced air
• Built-in 12V/0.5A fan supply
• Standby 5V/1A with fan, 0.6A without fan
• Operating altitude up to 2000 metres
• 3 years warranty

Oral irrigator
Hemodialysis monitors
Medical monitors
Sleep apnea devices
Pumps machine
Electric bed

  • ANSI/AAMI ES60601-1
  • Conduction - Class B
  • EN55011 (CISPR11)
  • EN55022 (CISPR22)
  • EN55024
  • EN60601-1-2 criteria A
  • EN61000-3-2, -3
  • EN61000-4-2,3,4,5,6,8,11,
  • IEC60601-1
  • Radiation - Class A
  • TUV EN60601-1
