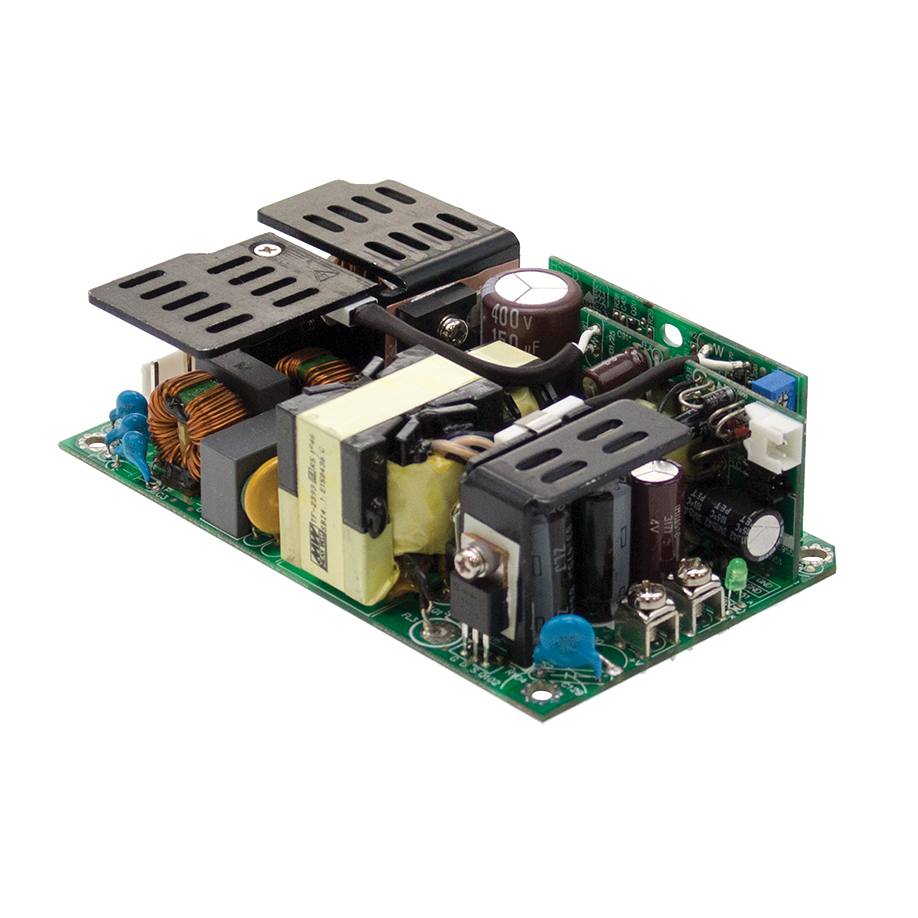

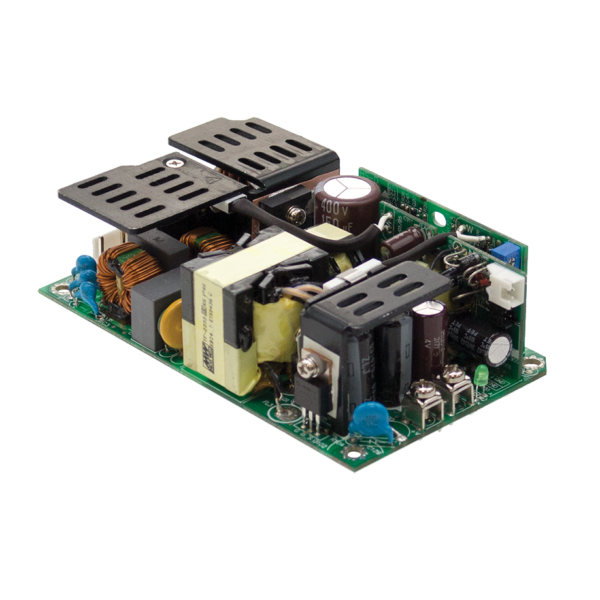

The RPS-300-15 is a 15V 300W PCB medical grade power supply with high power density on a 5 X 3 footprint accepting 90 ~ 264V AC inputs and various output voltages between 12V and 48V.
These units have a working efficiency of up to 93%, an extremely low no-load output consumption of bellow 0.5W and an extremely low leakage current of less than 150 µA. In addition, these units meet international medial regulations 2*MOPP and EMC EN55011 allowing the units to be fitted to all BF rated patient contact medical equipment.
5″ x 3″ miniature size
Universal AC input / Full range
Built-in active PFC function
Medical safety approved (2 x MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
No load power consumption <0.5W by PS-ON control
High Efficiency up to 93%
Protections: Short circuit / Overload / Over voltage/ Over Temperature
Cooling by free air convection for 200W and 300W with 20.5FM forced air
Built-in 12V/0.5A fan supply
Standby 5V/1A with fan, 0.6A without fan
Operating altitude up to 2000 metres
3 years warranty
Sleep apnea devices
