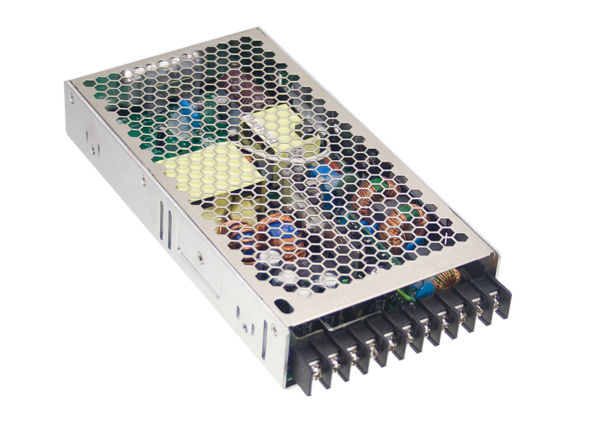

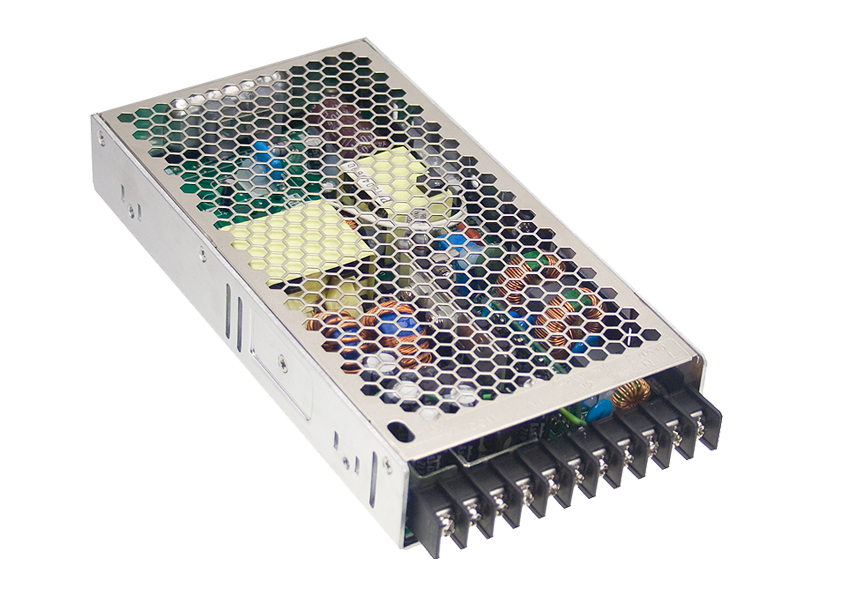

HDP-190 Series - 190W Dual Output Enclosed LED Power Supply with PFC Function
The HDP-190 series is a highly efficient enclosed type power supply with a 1U low profile, active PFC function and low voltage dual output. A fanless design for LED moving signs with a new system design concept enabling the power supply to drive RGB LED chips by 3.8/2.8V outputs.
Description
The HDP-190 series is a highly efficient enclosed type power supply with a 1U low profile, active PFC function and low voltage dual output. A fanless design for LED moving signs with a new system design concept enabling the power supply to drive RGB LED chips by 3.8/2.8V outputs.
Additional information
| Function | Conformal Coating |
|---|---|
| Standards | CSUUS |
| Technology | Active PFC |
| Type | AC/DC,Enclosed,Moving Sign |
| Range Power | |
| Outputs | Dual |
- Universal AC input/full range
- Built-in active PFC function, PF≥0.94
- High efficiency up to 86%
- Protections: Short circuit/Overload/Over Voltage/Over Temperature
- Cooling by free air convection
- 1U low profile 36mm
- Conformal coated
- ZVS technology to reduce power dissipation
- LED electric display/Moving sign
- LED TV wall
- LED channel letter relates applications
- CSUUS
