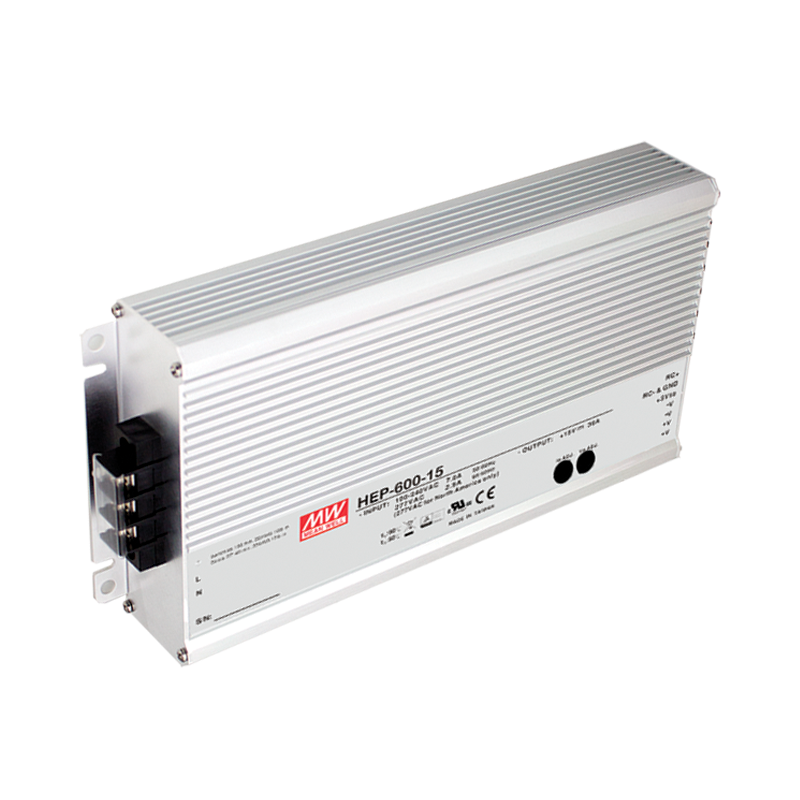

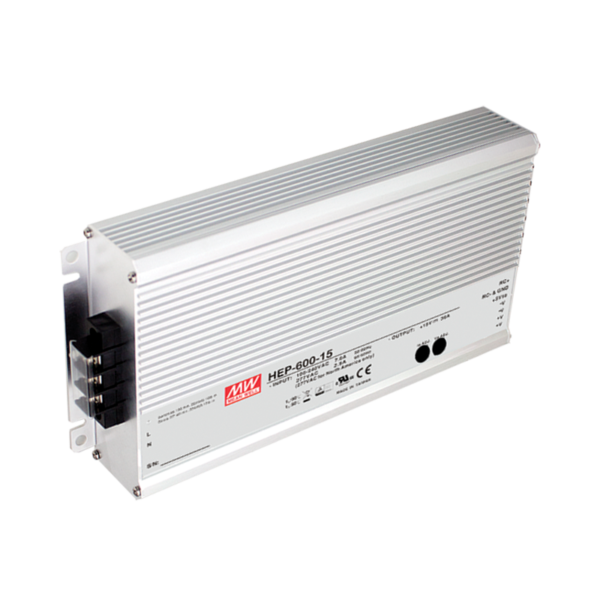

HEP-600-12 - HEP-600-12 480W 12V 40A Harsh Environment Enclosed Power Supply
480W 12V 40A Harsh Environment Enclosed Power Supply
Description
HEP-600-12 is a 12V 40A high efficiency AC/DC harsh environment power supply offering 480W power from a fully potted and enclosed aluminum case. The unit is designed to operate in harsh environments such as high-vibration, dusty, humid or oily conditions and is capable of fanless operation in ambient temperatures between -40C and +70C. HEP-600-12 has protections against over current, short circuit, over voltage & over temperature and approvals to UL, CUL, TUV, CB, and CE international regulations. Other standard features include built-in active PFC function, built-in 5V standby power, built-in remote ON/OFF control, efficiency up to 93% and <0.5W no-load power consumption at remote OFF.
Additional information
| Weight | 3.90 kg |
|---|---|
| Current (amps) | 40A |
| Efficiency (%) | 93% |
| Power (watts) | 480W |
| R&N (mV) | 150mV |
| Type | AC/DC,Enclosed,Harsh Environment,Security & Specific |
| Voltage (max/rated) | 12VDC |
| Range Power | |
| Outputs | Single |
