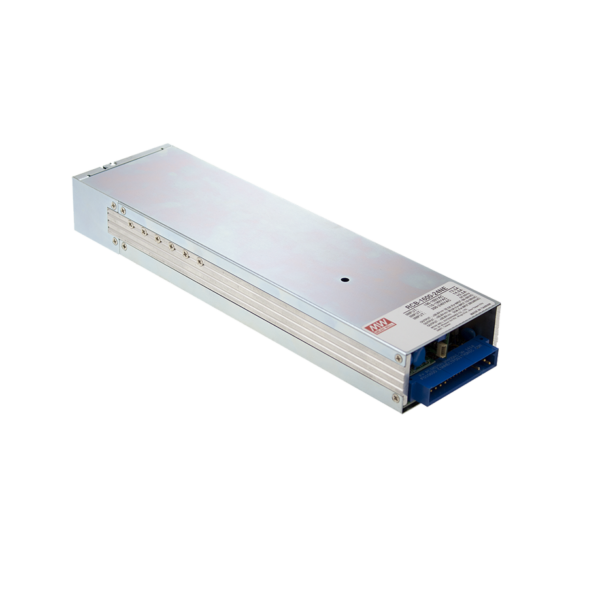

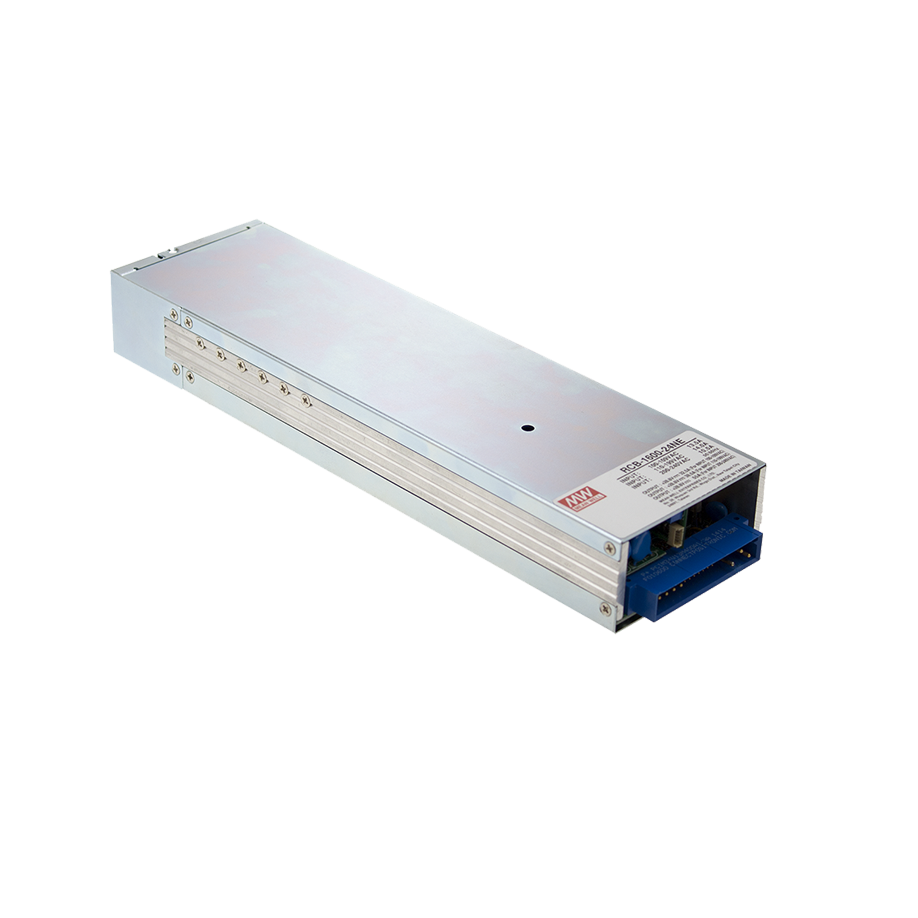

RCB-1600 series - RCB-1600 Series 1600W Rack Mountable Front End Battery Charger

The RCB-1600 Series are a single output 1600W AC/DC charger with 1U low profile (41mm), intelligent charging with embedded charging curves which are programmable.
Description
The RCB-1600 Series are a single output 1600W AC/DC charger with 1U low profile (41mm), intelligent charging with embedded charging curves which are programmable.
Users are also able to adjust the charging voltage via the built-in potentiometer, the output programmable functions, PMBus or the CANBus to charge different types of batteries; such as Lead-acid batteries and Li-ion batteries.
The various protection mechanisms, as well as the temperature compensation functions, are provided to assure the normal and safe operations. The rack-mountable attributes allows the RCB-1600 Series to also be perfectly suited to charging, backup or constant current source applications exploiting the rack architecture or central management.
Additional information
Inputs | 127 ~ 370VDC, 90 ~ 264VAC |
---|---|
Manufacturer | Mean Well Enterprises Ltd. |
Standards | Conduction – Class B, EN55032 (CISPR32), EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11,, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, Radiation – Class A, TUV EN60950-1, UL60950-1 |
Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in 12C interface, PMBus protocol
(optional CANBus protocol)
Universal AC input / Full range
(Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air Cooling by built-in DC fan
Output Voltage and constant current level programmable
Built-in OR-ing FET, Support hot swap (hot plug)
Active current sharing up to 8000W for one 19 rack shelf
Protections: Battery under voltage / Battery no connection protection / Short circuit / Over temperature
Optional conformal coating
5 years warranty
Safety Standards: UL60950-1, TUV EN60950-1 approved
Large scale DC UPS or emergency backup system
Marine battery charger module
Electric scooter or vehicle charger station
Waterwater treatment system
Electrolysis system
- Conduction - Class B
- EN55032 (CISPR32)
- EN61000-3-2, -3
- EN61000-4-2,3,4,5,6,8,11,
- EN61000-6-2 (EN50082-2)
- heavy industry level, criteria A
- Radiation - Class A
- TUV EN60950-1
- UL60950-1
Products in this range
Part number | Power (watts) | Current (amps) | Efficiency (%) | |
---|---|---|---|---|
RCB-1600-12 | 1440W | 100A | 90.50% | Request quote |
RCB-1600-12-CAN | 1440W | 100A | 90.50% | Request quote |
RCB-1600-24 | 1584W | 55A | 92% | Request quote |
RCB-1600-24-CAN | 1584W | 55A | 92% | Request quote |
RCB-1600-48 | 1584W | 27.5A | 93% | Request quote |
RCB-1600-48-CAN | 1584W | 27.5A | 93% | Request quote |
