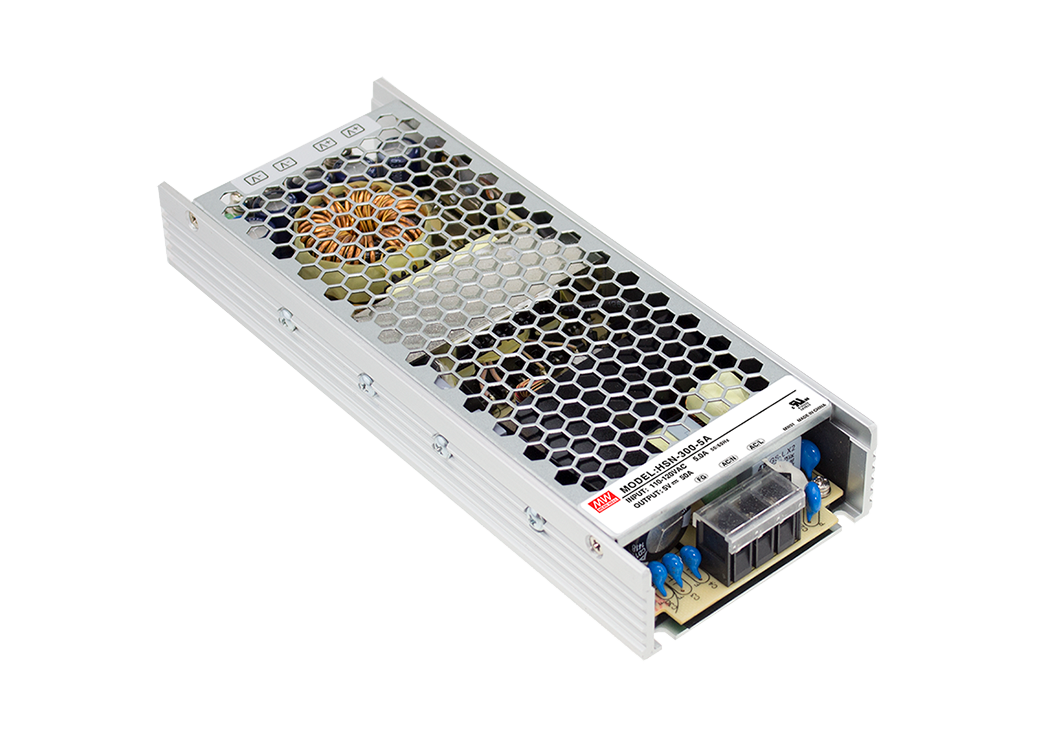

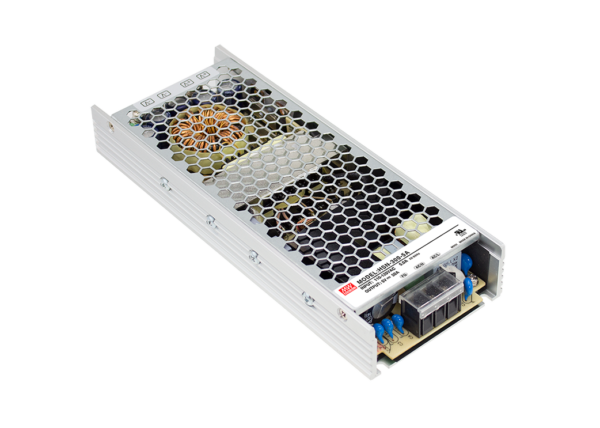

HSN-300 Series - HSN-300 Series 300W Single Output Switching Power Supply

The HSN-300 Series 300W single output switching power supply family has been specifically designed with the moving sign industry in mind, with low profile, led indicator for power on and reduced input voltage range to ensure lower costs and high power reliability.
SKU: HSN-300 Series
Categories: Enclosed Switching Power Supply, Switching Power Supply
Description
The HSN-300 Series 300W single output switching power supply family has been specifically designed with the moving sign industry in mind, with low profile, led indicator for power on and reduced input voltage range to ensure lower costs and high power reliability.
Additional information
Weight | 0.67 kg |
---|---|
Inputs | 180 ~ 264VAC,90 ~ 132VAC |
Standards | CUL |
Type | AC/DC,Enclosed,Moving Sign |
Range Power | |
Outputs | Single |
warranty |
- Low leakage current <1mA
- Short circuit, over load, over voltage, over temperature protections
- Cooling by free air convection
- 31mm low profile
- Conformal coated
- LED indicator for power on
- High power reliability
- 2 years warranty
- Moving Signs
- CUL
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | |
---|---|---|---|---|
HSN-300-4.2A | 210W | 4.2VDC | 50A | Request Quote |
HSN-300-4.2B | 252W | 4.2VDC | 60A | Request Quote |
HSN-300-5A | 250W | 5VDC | 50A | Request Quote |
HSN-300-5B | 300W | 5VDC | 60A | Request Quote |
