HEP-480 Series - HEP-480 Series 480W AC/DC Single Output Switching Power Supply

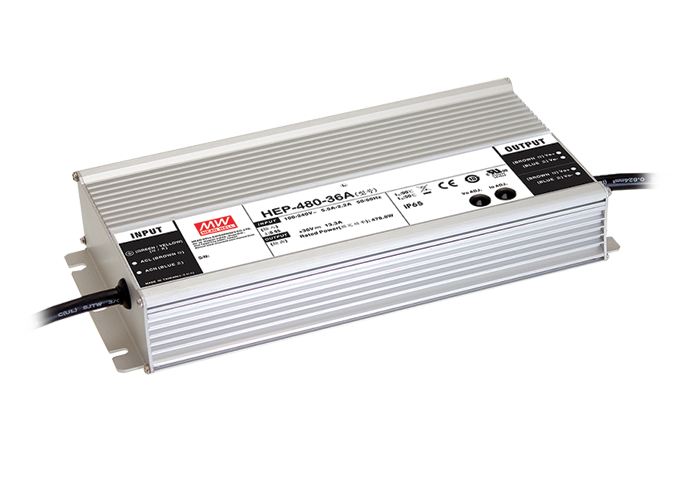

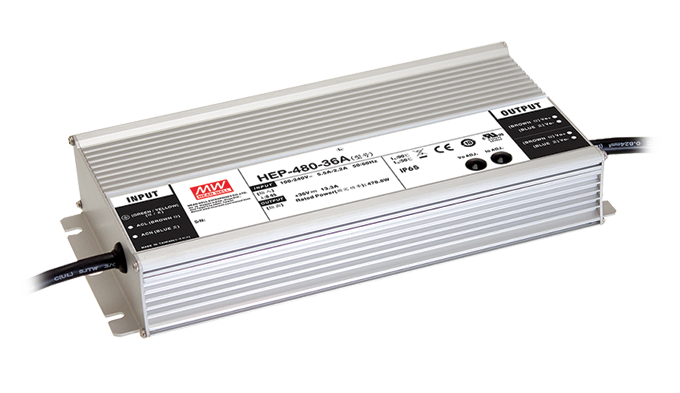

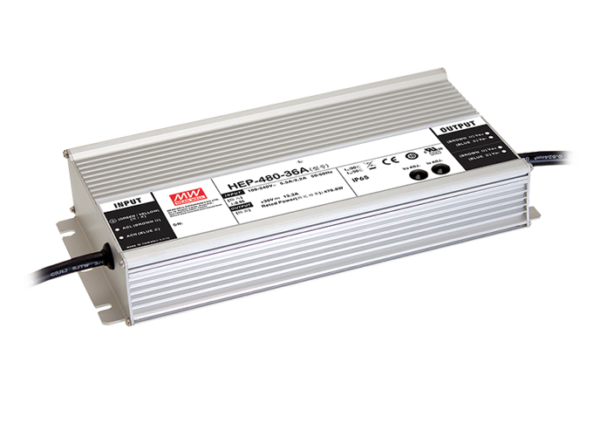

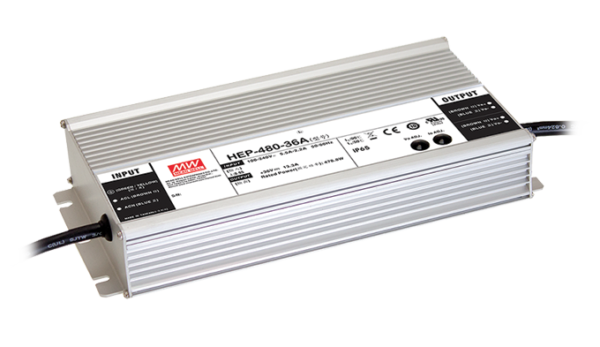

HEP-480 is a 480W AC/DC single output switching power supply.



Email

Description

HEP-480 is a 480W AC/DC single output switching power supply capable of operating under humid, dusty, oily, and high-vibration conditions at high altitude and in poorly ventilated environments. The entire series is housed within an aluminium case and is fully potted with heat-conducted silicone. Thanks to state-of-the-art design and working efficiency up to 95%, HEP-480 can operate between -55~+65°C under free air convection. HEP-480 is equipped with an IP65 protection level against the ingress of dust and water and has a 10G anti-vibration capability, meeting 6KV surge immunity level. HEP-480 is suitable for harsh environment applications all over the world, such as outdoor telecommunication equipment, outdoor electronic signage/billboards and petroleum plants or mineshaft facilities.

Additional information

Weight 2.80 kg
Inputs

90 ~ 305VAC

Technology

Active PFC

Type

AC/DC,Enclosed,Harsh Environment,Security & Specific

Range Power

Outputs

Single
