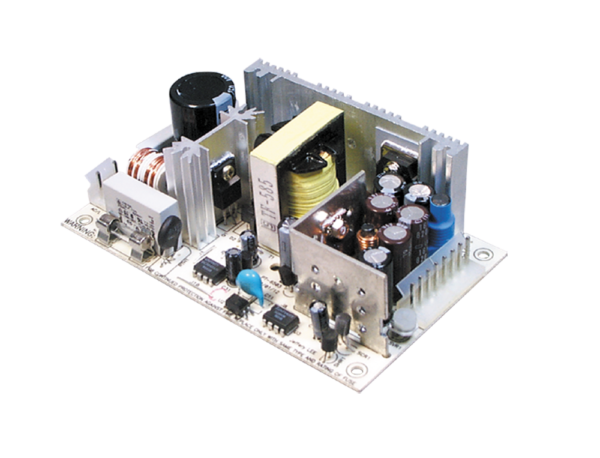

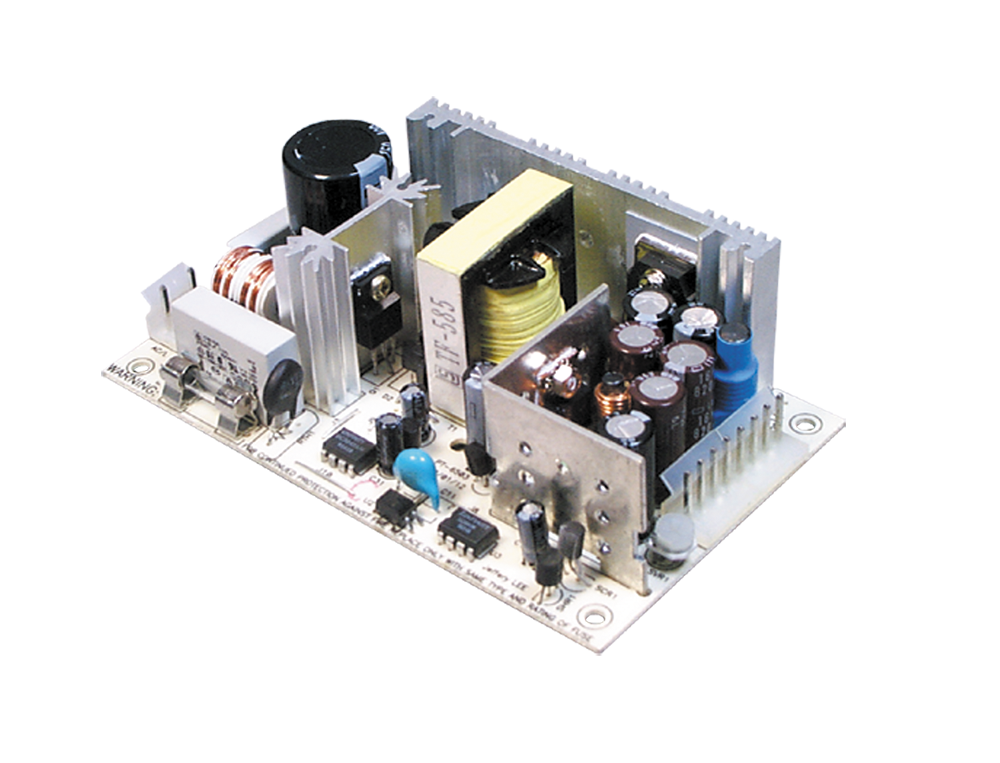

PT-6503 - PT-6503 65W Triple Output PCB Type with 3.3V Output
PT-6503 65W Triple Output PCB Type with 3.3V Output also has 5V and 12VDC output channels, and is protected against short circuit, over load and over voltage conditions.
Description
PT-6503 65W Triple Output PCB Type with 3.3V Output also has 5V and 12VDC output channels, and is protected against short circuit, over load and over voltage conditions. Other features include universal AC input, cooling by free air convection and fixed switching frequency at 65KHz.
Additional information
| Weight | 0.30 kg |
|---|---|
| Power (watts) | 61.8W |
| Standards | CSUUS |
| Type | AC/DC,Industrial,Open Frame |
| Range Power | |
| Outputs | Triple |
- Universal AC input
- High reliability
- Short circuit, over voltage, over load protections
- Compact size, light weight
- Cooling by free air convection
- 100% full load burn in test
- Fixed switching frequency at 65KHz
| Input Voltage | 90 ~ 264Vac 127 ~ 370Vdc |
| Input Frequency | 47 ~ 630Hz |
| Efficiency | 72% |
| Input Current | 1.8A/115Vac 0.9A/230Vac |
| Inrush Current | 20A/ 115V, 40A/ 230V cold start |
| Leakage Current | <1mA/240V |
| Rated Power | Total power max. 61.8W(CH1+CH2 max. 54W) |
| Set Up, Rise Time | 800ms, 50ms at full load |
| Hold Time | 60ms at full load |
| Over Load Protection | 120~160% rated output voltage |
| Hiccup mode, recovers automatically after fault condition is removed | |
| Over Voltage Protection | Hiccup mode, recovers automatically after fault condition is removed |
| Working Temperature | -10°C ~ +60°C (Refer to output load derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temperature, Humidity | -20°C ~ +85°C, 10 ~ 95% RH |
| Temperature Coefficient | ±0.03%/°C (0 ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X,Y, Z axes |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1min. |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
| Safety Standards | UL60950-1, TUV EN60950-1 Approved |
| EMC | Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3; |
| EN61000-4-2,3,4,5,6,11 Light industry level, criteria A | |
| MTBF | 222Khrs min. MIL-HDBK-217F (25°C) |
- CSUUS
