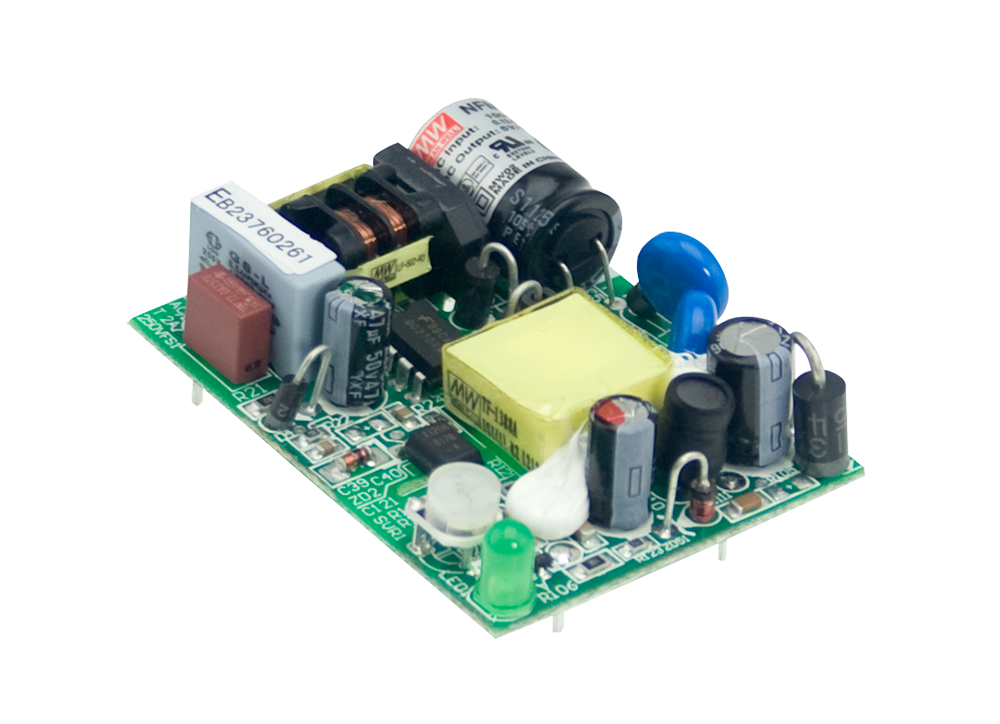

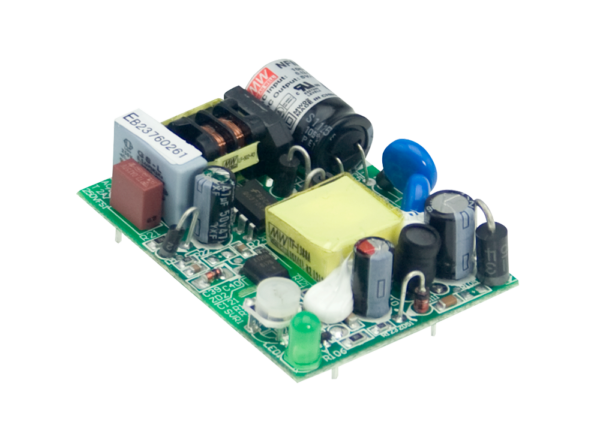

NFM-05-12 - 5.04W 12V 0.42A On-Board Type Medical PSU

NFM-05-12 is a 5.04W 12V 0.42A On-Board Type Medical PSU

Email

Additional information

Weight 0.04 kg
Current (amps)

0.42A

Efficiency (%)

73%

Power (watts)

5.04W

R&N (mV)

150mV

Type

AC/DC

Voltage (max/rated)

12V

Range Power

Outputs

Single

  • Universal AC input/full range
  • Ultra low profile
  • Isolation class II
  • No load power consumption <0.5W
  • Short circuit, OLP, OVP & OTP
  • Compliance to UL60601-1 & TUV EN60601-1 medical standards
  • Cooling by free air convection
  • Non-patient contact medical
  • General electronics
  • IT equipment
  • Industrial
  • MFM-05-12
