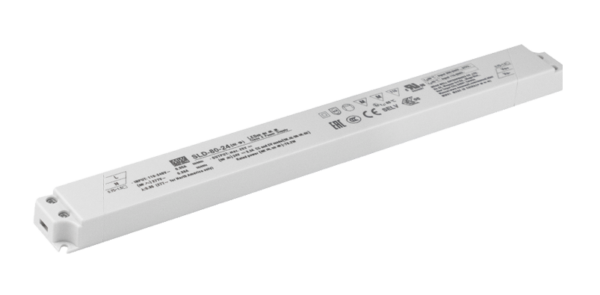

SLD-80-12 - 12V 80W Constant Voltage and Constant Current LED Driver

SLD-80-12 has a low profile design and linear housing, ideal for signage and linear luminaire applications.

Email

Description

SLD-80-12 series is a 80W AC/DC LED driver featuring the dual modes constant voltage and constant current output.

SLD-80-12 operates from 110~305VAC and offers an output voltage of 12V.

Thanks to the high efficiency of up to 90.5%, with the fan-less design, the entire series is able to operate for -20°C ~ +90°C case temperature under free air convection.

SLD-80-12 design with low profile and linear housing is ideal for signage and linear luminaire applications.



For more information and to discuss your requirements, please contact us.

Additional information

Current (amps)

6.6A

Efficiency (%)

90.5%

Power (watts)

79.2W

Type

AC/DC,Constant Current,Constant Voltage

Voltage (max/rated)

12VDC

Range Power

  • Constant voltage and constant current mode output
  • Wide input range 110-305VAC with PFC function
  • Compliance with EN61347 regulation
  • Class II power unit (Except for 12V)
  • Slim and linear housing design
  • No load power consumption <0.5W
  • 3 years warranty
  • Panel lighting
  • Strip lighting
  • Decoration lighting
  • Troffer lighting
  • Signage and display
  • Cove lighting
