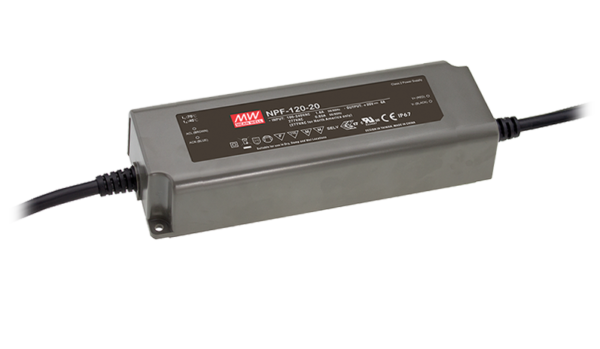

NPF-120-24 - NPF-120-24 NFP-120-24 IP67 Rated 24V 120W Constant Voltage + Constant Current LED Driver
NFP-120-24 IP67 Rated 24V 120W AC/DC Constant Voltage + Constant Current LED Driver
Description
The NPF-120-24 is a IP67 Rated 24V 120W AC/DC LED driver featuring dual mode constant voltage and constant current outputs. The Series operates from 90~305VAC. Due to the NPF-120-24 high efficiency of up to 90.5% and fanless design, the entire series is able to for at -40°C ~ +90°C case temperature under free air convection.
Additional information
| Weight | 0.97 kg |
|---|---|
| Current (amps) | 5A |
| Efficiency (%) | 90.5% |
| IP rating | IP67 |
| Power (watts) | 120W |
| R&N (mV) | 150mV |
| Standards | CB |
| Type | AC/DC,Constant Current,Constant Voltage,LED Driver |
| Voltage (max/rated) | 24VDC |
| Range Power | |
| Outputs | Single |
