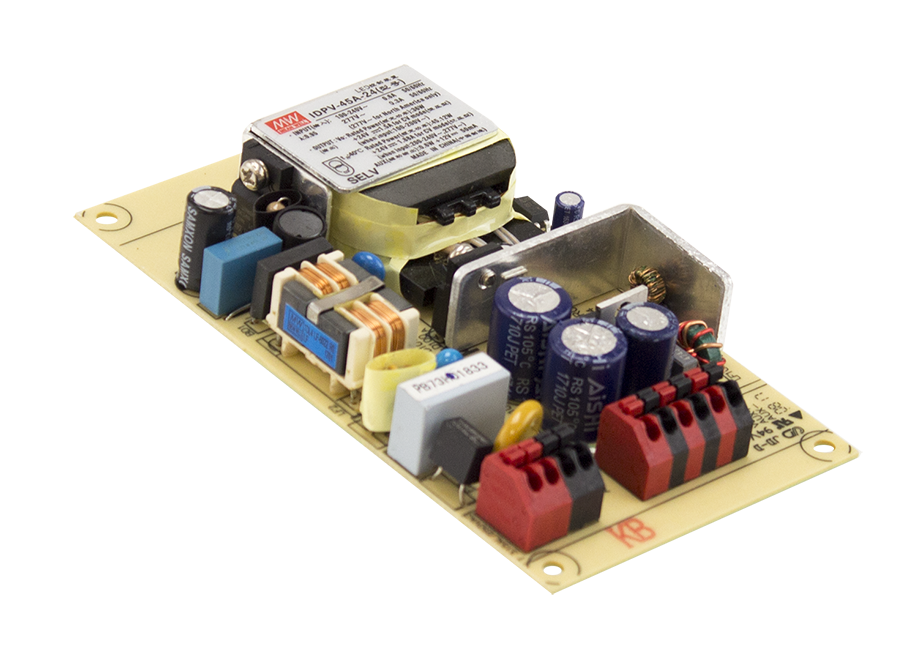

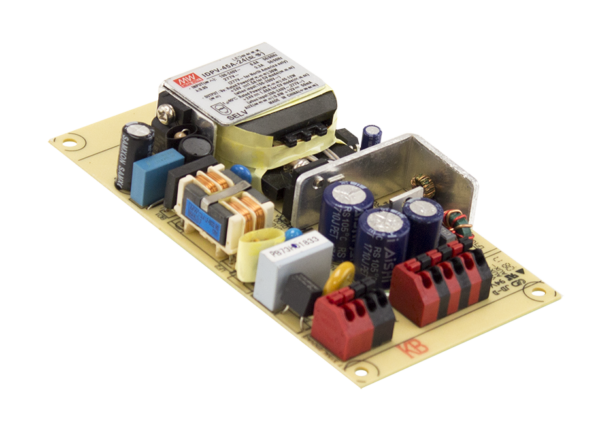

IDPV-45-48 - 45.12W 48V 0.94A PWM Output LED Driver

IDPV-45-48 is a 45.12W 48V 0.94A PWM Output LED Driver.
Additional information
Weight | 0.25 kg |
---|---|
Current (amps) | 0.94A |
Efficiency (%) | 88% |
Function | Dimmable |
Inputs | 90 ~ 295VAC |
Power (watts) | 45.12W |
Type | AC/DC,Constant Voltage,LED Driver |
Voltage (max/rated) | 48VDC |
Range Power | |
Outputs | Single |
- Constant Voltage PWM style output with frequency 1KHz
- PCB type design
- Built-in active PFC function
- No load power consumption <0.5W (Blank-Type)
- Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
- 3 years warranty
- LED strip lighting
- Indoor LED lighting
- LED decorative lighting
- LED architecture
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | Efficiency (%) | |
---|---|---|---|---|---|
IDPV-45-12 | 36W | 12VDC | 3.0A | 84% | Request Quote |
IDPV-45-24 | 45.12W | 24VDC | 1.88A | 86% | Request Quote |
IDPV-45-36 | 45W | 36VDC | 1.25A | 88% | Request Quote |
IDPV-45-48 | 45.12W | 48VDC | 0.94A | 88% | Request Quote |
IDPV-45-60 | 45W | 60VDC | 0.75A | 90% | Request Quote |
