NPF-40-20 NPF-40-20 20V 2A 40W Constant Voltage + Constant Current LED Driver

NPF-40-20 - NPF-40-20 NPF-40-20 20V 2A 40W Constant Voltage + Constant Current LED Driver

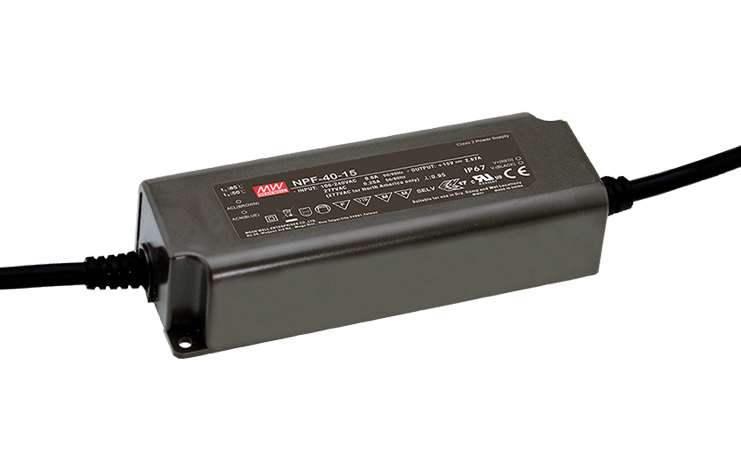

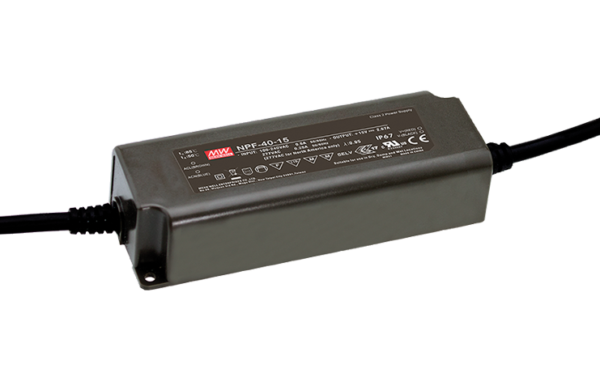

NPF-40-20 20V 2A 40W Constant Voltage + Constant Current LED Driver

Email
SKU: NPF-40-20 Categories: , Category:

Additional information

Weight 0.49 kg
Current (amps)

2A
Efficiency (%)

88%
OVP (volts)

23 ~ 27V
Power (watts)

40W
R&N (mV)

150mV
Technology

Active PFC
Type

AC/DC,Constant Current,Constant Voltage,LED Driver
Voltage (max/rated)

20VDC
Range Power

Outputs

Single

Products in this range

Part number Power (watts) Voltage (max/rated) Current (amps) R&N (mV) Efficiency (%)
NPF-40-12 40.08W 12VDC 3.34A 150mV 86% Request Quote
NPF-40-15 40.08W 15VDC 2.67A 150mV 87% Request Quote
NPF-40-20 40W 20VDC 2A 150mV 88% Request Quote
NPF-40-24 40.08W 24VDC 1.67A 150mV 89% Request Quote
NPF-40-30 40.2W 30VDC 1.34A 200mV 89% Request Quote
NPF-40-36 40.32W 36VDC 1.12A 200mV 90% Request Quote
NPF-40-42 40.32W 42VDC 0.96A 200mV 90% Request Quote
NPF-40-48 40.32W 48VDC 0.84A 200mV 90% Request Quote
NPF-40-54 41.04W 54VDC 0.76A 350mV 90% Request Quote
