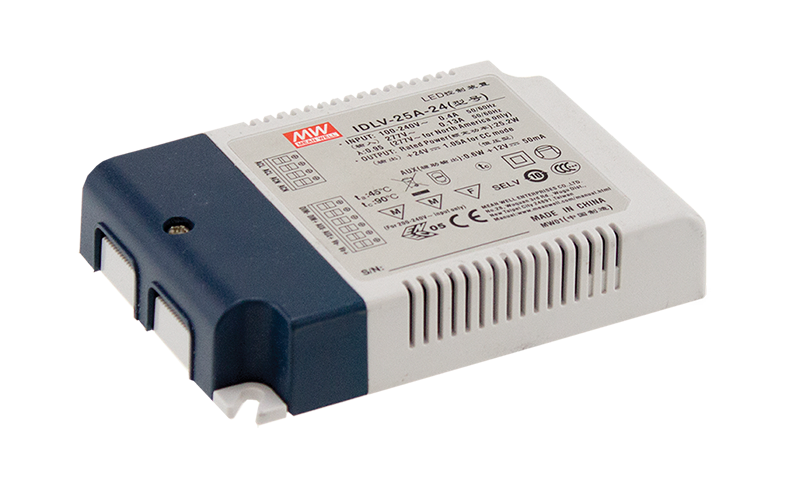

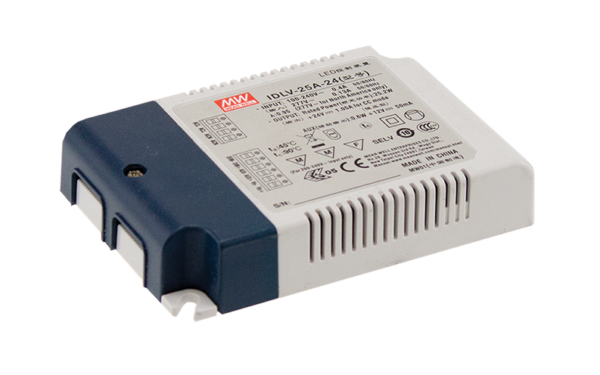

IDLV-25-36 - IDLV-25-36 25.2W 36V 0.7A PWM Output LED Driver
IDLV-25-36 is a 25.2W 36V 0.7A PWM Output LED Driver
Description
IDLV-25-36 is a 25.2W 36V 0.7A AC/DC LED driver featuring a constant voltage mode PWM style output
design. IDLV-25-36 operates from 90~295VAC. Thanks to the high efficiency up to 82% and fan less design, the product is able to operate between -20~+90°C under free air convection. IDLV-25-36 is equipped with various function options, such as dimming methodologies, so as to provide the design flexibility for a LED lighting system.
Additional information
Weight | 0.20 kg |
---|---|
Current (amps) | 0.7A |
Efficiency (%) | 82% |
Power (watts) | 25.2W |
Type | AC/DC,Constant Voltage,LED Driver |
Voltage (max/rated) | 36VDC |
Range Power |
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | Efficiency (%) | |
---|---|---|---|---|---|
IDLV-25-12 | 21.6W | 12VDC | 1.8A | 80% | Request Quote |
IDLV-25-24 | 25.2W | 24VDC | 1.05A | 81% | Request Quote |
IDLV-25-36 | 25.2W | 36VDC | 0.7A | 82% | Request Quote |
IDLV-25-48 | 24.96W | 48VDC | 0.52A | 83% | Request Quote |
IDLV-25-60 | 25.2W | 60VDC | 0.42A | 84% | Request Quote |
