HomeMEAN WELL ProductsLED Power SupplyNPF-120D-12 NPF-120D-12 IP67 Rated 12V 120W Single Output LED Driver with 3 in 1 dimming

NPF-120D-12 - NPF-120D-12 NPF-120D-12 IP67 Rated 12V 120W Single Output LED Driver with 3 in 1 dimming

NPF-120-12 IP67 Rated 7.2V ~ 12V 120W AC/DC Single Output LED Driver with 3 in 1 dimming

Email
SKU: NPF-120D-12 Categories: , Category:

Description

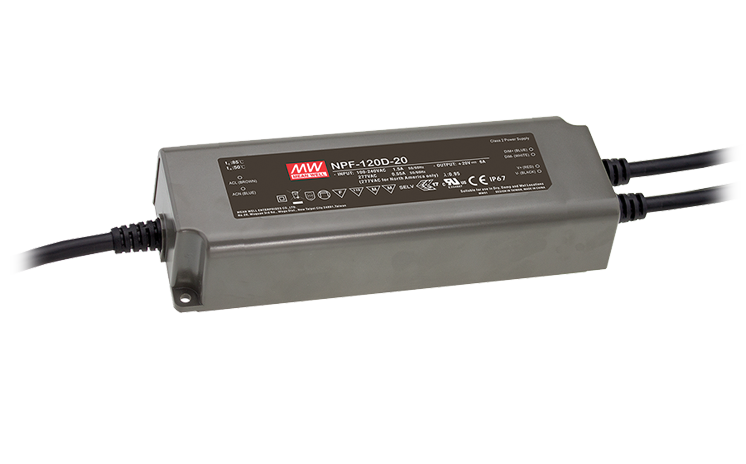

The NPF-120D-12 is an IP67 Rated 120W AC/DC LED driver feauting a 7.2V ~ 12V constant current output and 3 in 1 dimming (dim-to-off). The Series operates from 90~305VAC. Due to the high efficiency of up to 90% with a fanless design, the entire series is able to operate for -40°C~+90°C case temperature under free air convection.

Additional information

Weight 0.97 kg
Current (amps)

10A

Efficiency (%)

87.5%

Function

3 in 1 Dimming

IP rating

IP67

Power (watts)

120W

R&N (mV)

150mV

Standards

CB

Type

AC/DC,Constant Current,LED Driver

Voltage (max/rated)

12V

Range Power

Outputs

Single
