HomeMeanwell ProductsUncategorizedRPS-120-48-C 120W 48V Single Output Green Medical Grade Enclosed Power Supply

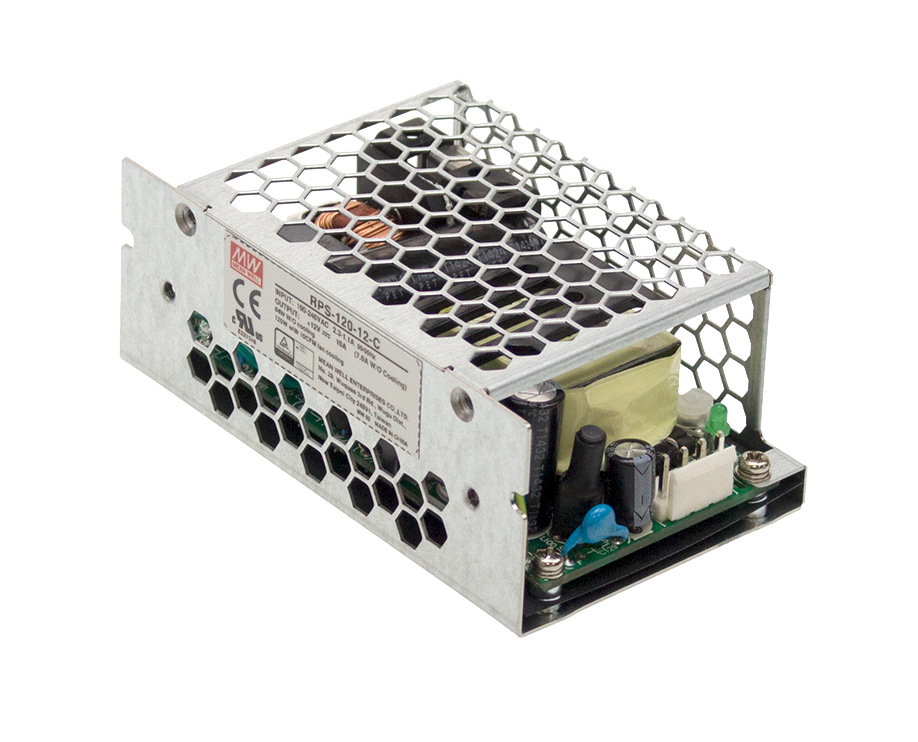

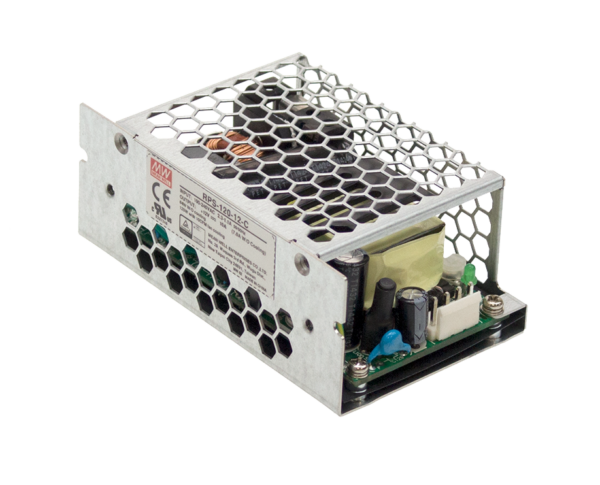

RPS-120-48-C - RPS-120-48-C 120W 48V Single Output Green Medical Grade Enclosed Power Supply

The RPS-120-48 is a 120W 48V highly reliable Enclosed medical grade power supply with an input range of 80 ~ 264VAC appropriate for use with both Class I (with FG) and Calss II (no FG) system designs.

Email

Description

The RPS-120-48 is a 120W 48V highly reliable Enclosed medical grade power supply with an input range of 80 ~ 264VAC . The RPS-120 series has a working efficiency of up to 91% and an extremely low no load power consumption of below 0.3W. There is also an extremely low leakage current of less than 150 µA. This series is appropriate for use with both Class I (with FG) and Calss II (no FG) system designs.

Additional information

Weight 0.27 kg
Current (amps)

2.5A

Efficiency (%)

91%

Inputs

80 ~ 264VAC

Power (watts)

120W

R&N (mV)

150mV

Standards

BE

Type

AC/DC,Enclosed,Medical Grade

Range Power

Outputs

Single

• 4″ x 2″ miniature size
• Universal AC input / Full range
• Medical safety approved (2 x MOPP between primary to secondary)
• Suitable for BF application with appropriate system consideration
• Low Leakage current
• EMI Class B for both Class I (with FG) and Class II (without FG) configuration
• No load power consumption <0.3W
• Protections: Short circuit / Overload / Over voltage/ Over Temperature
• Cooling by free air convection for 84W and 120W with 10CFM forced air
• Built-in 12V/0.5A fan supply
• Operating altitude up to 4000 metres
• 3 years warranty

• Oral Irrigator
• Medodialysis Machine
• Sleep Apnea Devices
• Medical Monitors
• Pumps Machines
