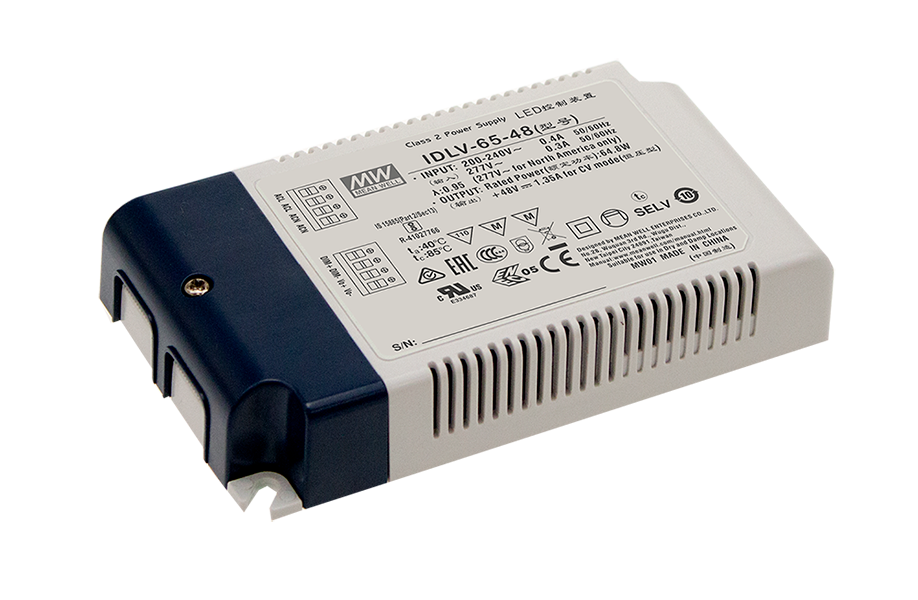

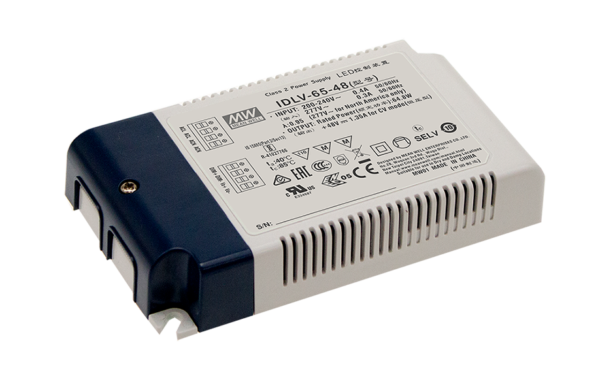

IDLV-65-24 57.6W 24V 2.4A AC/DC PWM Output LED Driver

IDLV-65-24 - IDLV-65-24 57.6W 24V 2.4A AC/DC PWM Output LED Driver

IDLV-65-24 is a 57.6W 24V 2.4A AC/DC PWM Output LED Driver

Email
SKU: IDLV-65-24 Categories: , Category:

Description

IDLV-65-24 is a 57.6W 24V 2.4A AC/DC LED driver featuring a constant voltage mode PWM style output design and operates from 180~295VAC. Thanks the high efficiency up to 87% and fan less design, IDLV-65-24 is able to operate from -20~+85°C case temperature under free air convection. IDLV-65-24 is equipped with various function options, such as dimming methodologies, so as to provide the design flexibility for LED lighting system.

Additional information

Weight 0.23 kg
Current (amps)

2.4A
Efficiency (%)

87%
Function

Dimmable
Inputs

180 ~ 295VAC
Power (watts)

57.6W
Type

AC/DC,Constant Voltage,LED Driver
Voltage (max/rated)

24VDC
Range Power

Outputs

Single

Products in this range

Part number Power (watts) Voltage (max/rated) Current (amps) Efficiency (%)
IDLV-65-12 50.4W 12VDC 4.2A 85% Request Quote
IDLV-65-24 57.6W 24VDC 2.4A 87% Request Quote
IDLV-65-36 64.8W 36VDC 1.8A 88% Request Quote
IDLV-65-48 64.8W 48VDC 1.35A 89% Request Quote
IDLV-65-60 64.8W 60VDC 1.08A 90% Request Quote
