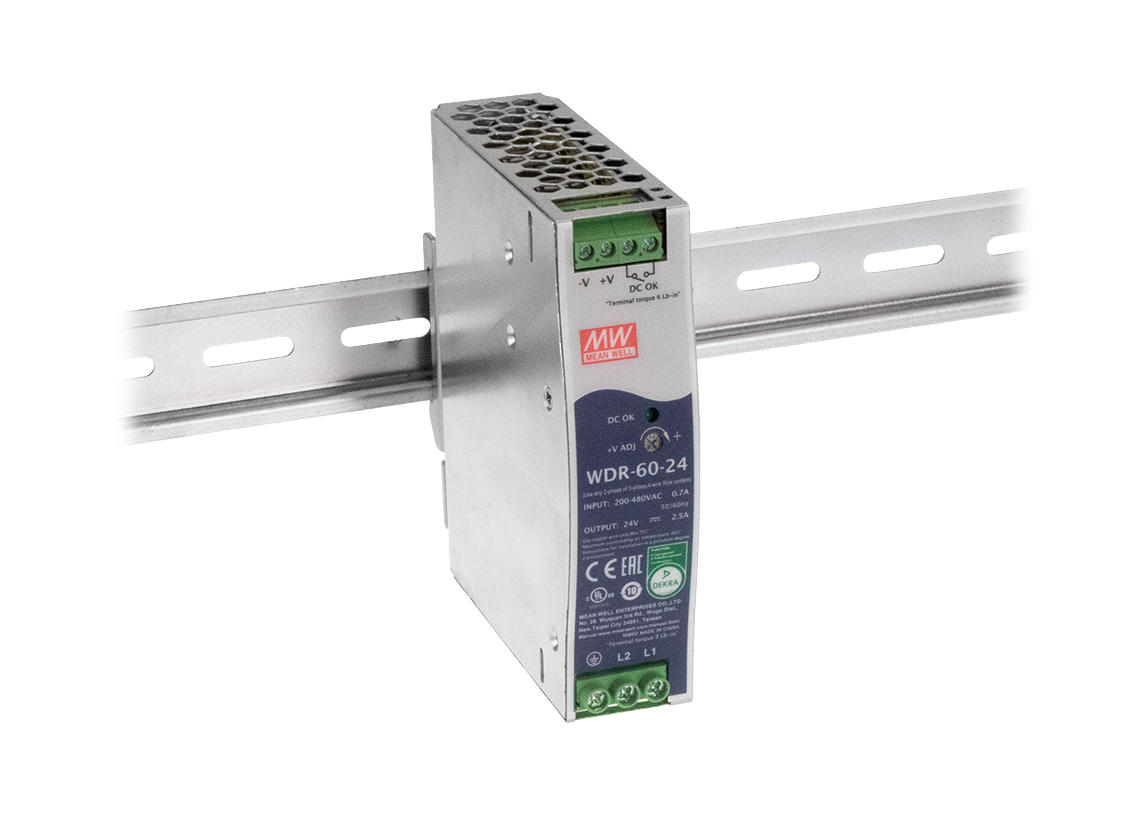

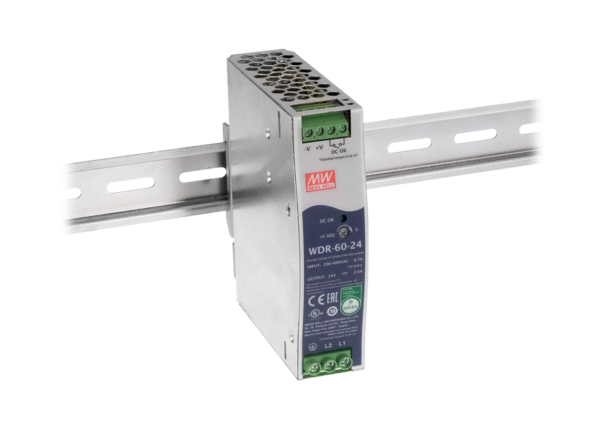

WDR-60-24 - 24V 60W Ultra Wide Input Industrial DIN Rail Power Supply
WDR-60-24 is a 60W DIN rail power supply with ultra-wide AC input range, suitable for industrial automation, surveillance and telecommunication applications.
Description
WDR-60-24 Series is a 60W DIN rail power supply with ultra-wide AC input range.
It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails.
It can accept 180~550VAC ultra-wide input voltage range for single phase or 2-phase system, it is easy to install and has a slim design. It has a wide operating temperature range of -30 ~ +85°C, 4.7KVAC high isolation voltage, operation at 2000m altitude and high efficiency.
WDR-60-24 is compliant with EN-61000-6-2 standard regarding immunity for industrial environments.
It is suitable for industrial automation, surveillance, telecommunication and more applications.
For more information and to discuss your requirements, please contact us.
Additional information
| Weight | 0.32 kg |
|---|---|
| Current (amps) | 2.5A |
| Efficiency (%) | 89% |
| Power (watts) | 60W |
| Type | AC/DC,Din-Rail,Industrial |
| Voltage (max/rated) | 24VDC |
- 180 ~ 550VAC ultra wide input for 1-phase or 2-phase
- 32mm slim width
- 4.7KVAC I/O high isolation (reinforced isolation)
- Protections: short circuit / overload / over voltage / over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- -30~+85°C ultra wide operating temperature (>+60°C derating)
- Over voltage category III
- DC OK relay contact
- DC output voltage adjustable (+20%)
- 3 years warranty
- Industrial control system
- Semiconductor fabrication equipment
- Factory automation
- Electro mechanical apparatus
