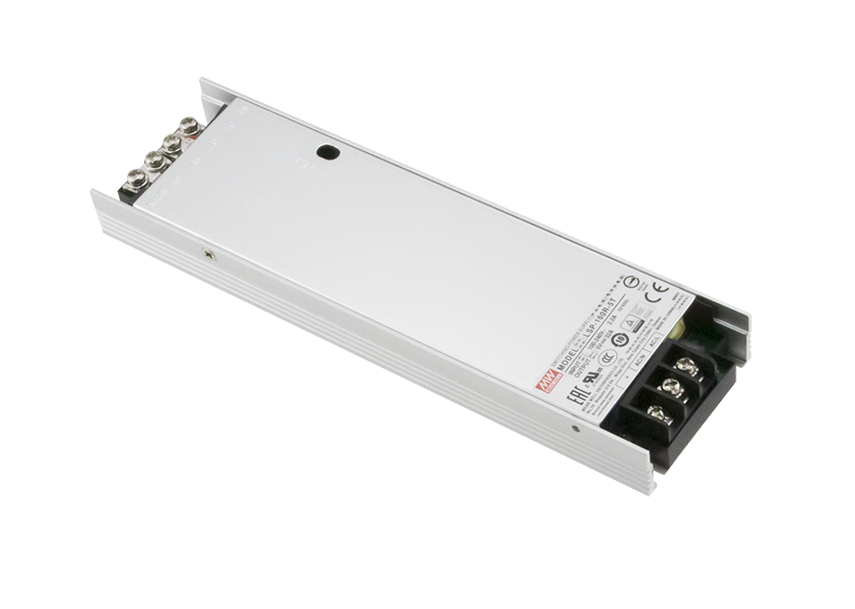

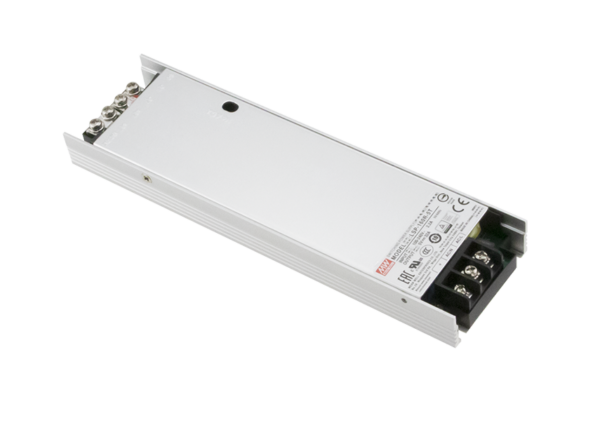

LSP-160R-3.3T - LSP-160R-3.3T 3.3V 32A 105.6W Current Sharing PFC Switching Power Supply
LSP-160R-3.3T 3.3V 32A 105.6W Current Sharing PFC Switching Power Supply
Additional information
| Current (amps) | 32A |
|---|---|
| Efficiency (%) | 87.5% |
| Function | Current Sharing,DC OK Signal |
| OVP (volts) | 3.8 ~ 4.6V |
| Power (watts) | 105.6W |
| R&N (mV) | 200mV |
| Standards | TUV-62368-1,EAC,CB,CUL,CE,CCC,BSMI |
| Type | AC/DC,Enclosed,Moving Sign |
| Voltage (max/rated) | 3.3VDC |
| Range Power | |
| warranty |
- Slim width and low profile(20mm)
- Fanless design for no noise environment
- Withstand 300VAC surge input for 5 seconds
- DC OK active signal function Semi-Potting for high moisture environment
- Protections: Short circuit / Over load /Over voltage / Over temperature
- Current sharing for redundant function(5V/4.2V/3.3V only)
- Operating altitude up to 5000 meter (Note.5)
- LED indicator for power on
- 3 years warranty
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- Household appliances
- LED display application
