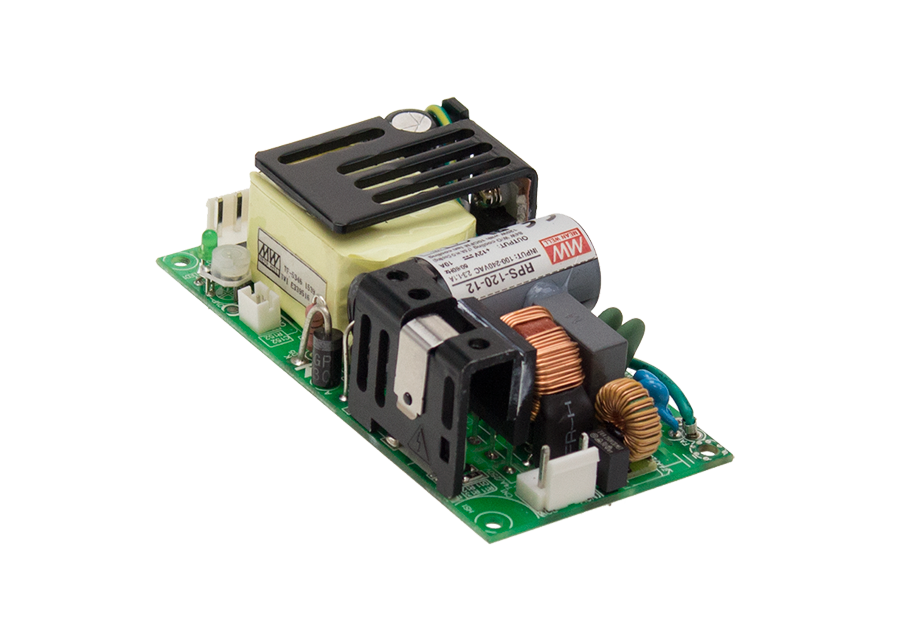

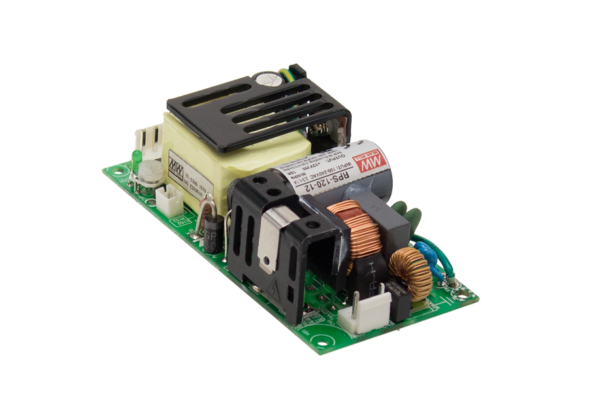

RPS-120-15 - RPS-120-15 120W 15V Single Output Green Medical Grade PCB Power Supply
The RPS-120-15 is a 120W 15V highly reliable PCB medical grade power supply with an input range of 80 ~ 264VAC appropriate for use with both Class I (with FG) and Calss II (no FG) system designs.
Description
The RPS-120-15 is a 120W 15V highly reliable PCB medical grade power supply with an input range of 80 ~ 264VAC . The RPS-120 series has a working efficiency of up to 91% and an extremely low no load power consumption of below 0.3W. There is also an extremely low leakage current of less than 150 µA. This series is appropriate for use with both Class I (with FG) and Calss II (no FG) system designs.
Additional information
| Weight | 0.18 kg |
|---|---|
| Current (amps) | 80A |
| Efficiency (%) | 89% |
| Inputs | 80 ~ 264VAC |
| Power (watts) | 120W |
| R&N (mV) | 120mV |
| Standards | BE |
| Type | AC/DC,Medical Grade,Open Frame |
| Voltage (max/rated) | 15VDC |
| Range Power | |
| Outputs | Single |
• 4″ x 2″ miniature size
• Universal AC input / Full range
• Medical safety approved (2 x MOPP between primary to secondary)
• Suitable for BF application with appropriate system consideration
• Low Leakage current
• EMI Class B for both Class I (with FG) and Class II (without FG) configuration
• No load power consumption <0.3W
• Protections: Short circuit / Overload / Over voltage/ Over Temperature
• Cooling by free air convection for 84W and 120W with 10CFM forced air
• Built-in 12V/0.5A fan supply
• Operating altitude up to 4000 metres
• 3 years warranty
• Oral Irrigator
• Medodialysis Machine
• Sleep Apnea Devices
• Medical Monitors
• Pumps Machines
