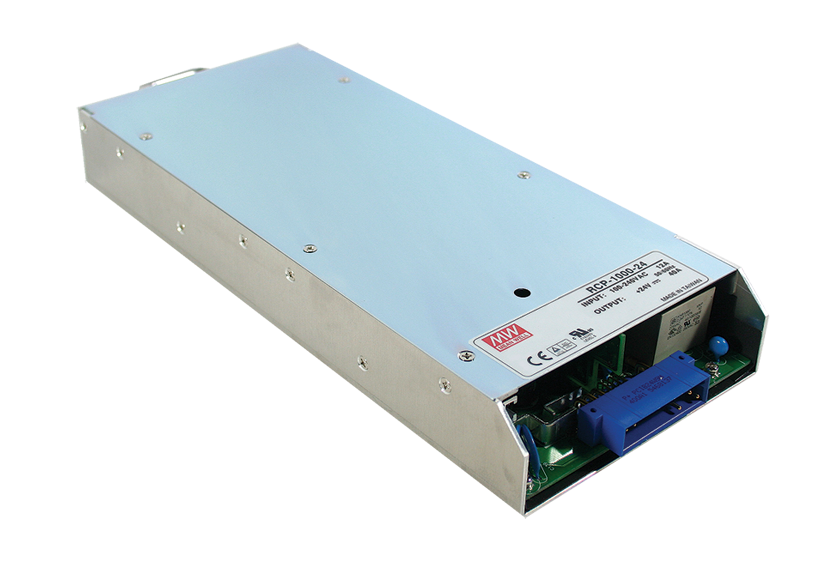

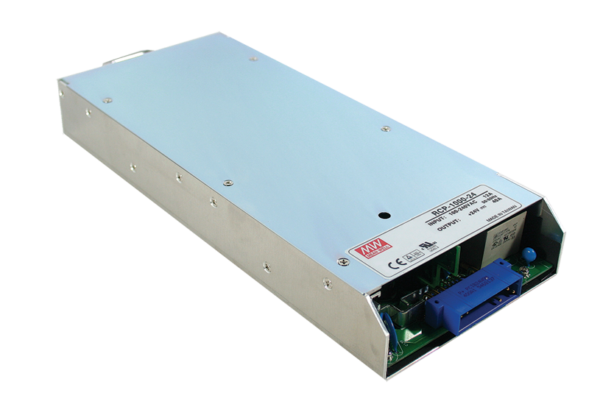

RCP-1000 Series - 1000W Front End Power System

Email

Description

1U low profile 19″ rack mount power solution consisting of 1 to 3 hot-swappable RCP-1000 units that, up to 3000W, can be provided in a single rack. Featuring active PFC and 10.67W/in2 extremely high power density. With the ability to provide rated output wattage even at 100VAC input, due to its high efficiency design, and three output voltage levels that can allow 12V@180A, 24V@120A, 48V@63A to be selected as the front end power configuration. The racks can also be paralleled together (up to 3 racks) for higher wattage output applications.For Rack System specifications click here.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

CB, CE, CSUUS, Parallel, PFC, TUV

Type

AC/DC

Outputs

Single

  • Universal AC input
  • Built-in 5V/0.3A auxiliary power
  • Built-in active PFC function, PF>0.96
  • Short circuit, over load, over voltage & over temperature protections
  • Forced air cooling by built-in DC fan with fan speed control
  • Low profile:1U height
  • Active current sharing up to 3000W (3 units)in 19" rack
  • Remote control for single unit
  • Built-in remote sense function
  • Output voltage trimming function
  • Hot-swap operation
  • Optional I C serial data bus
  • AC OK & DC OK signal
  • Internal ORing diode
  • Option of AC Inlet or Terminal block on Rack
  • Server instrumentation
  • Factory Automation
  • Telecommunications
  • Datacommunications
  • RF Amplifiers
